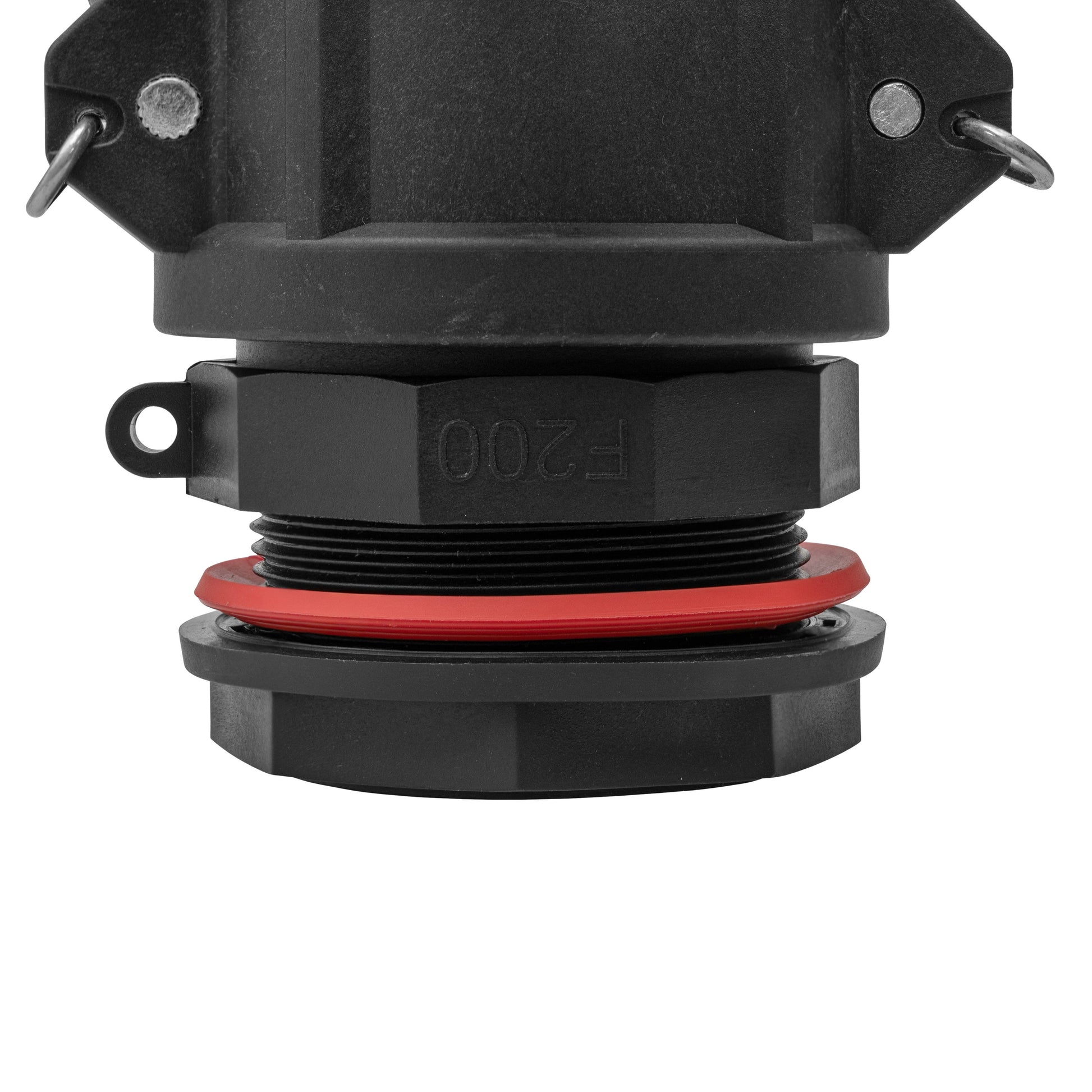

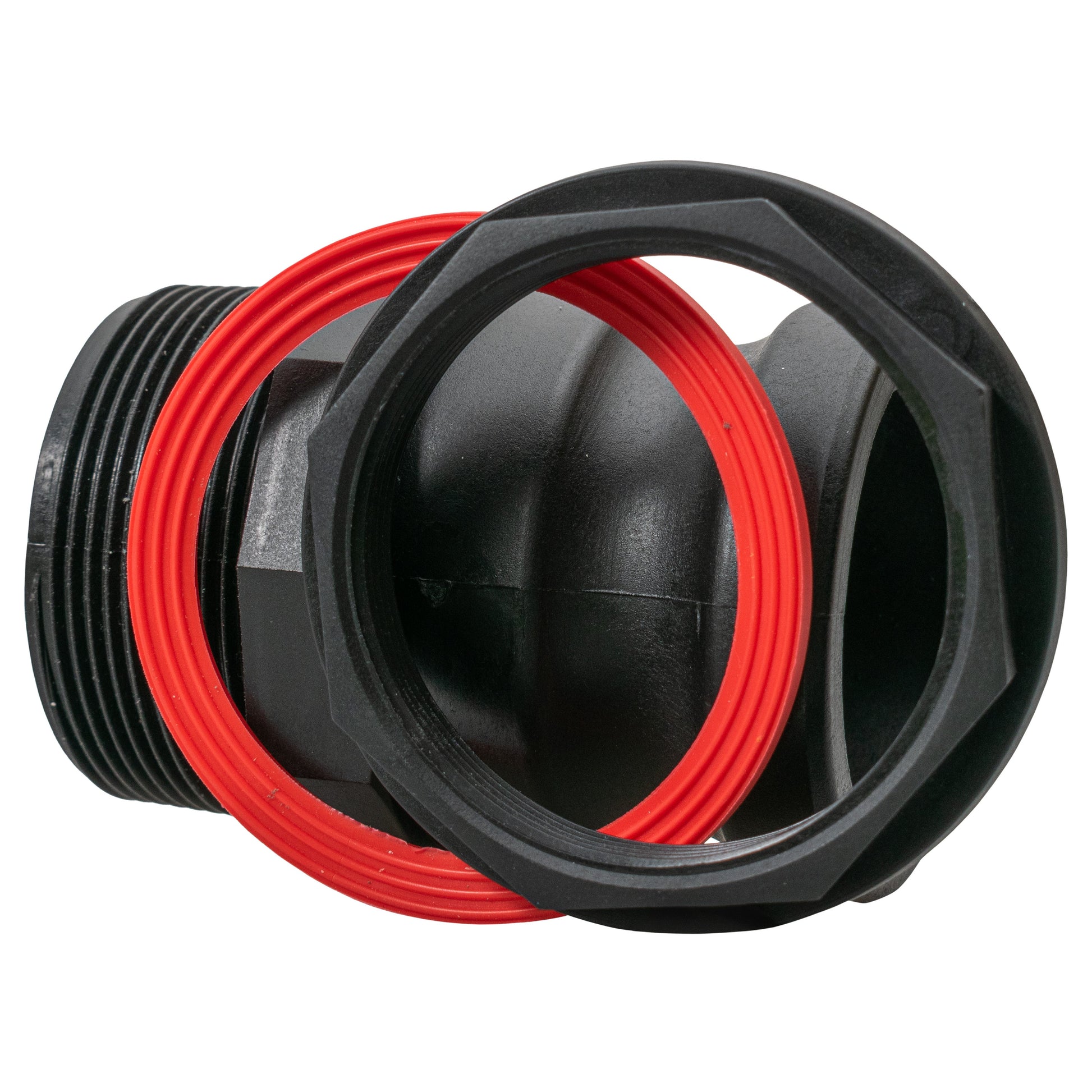

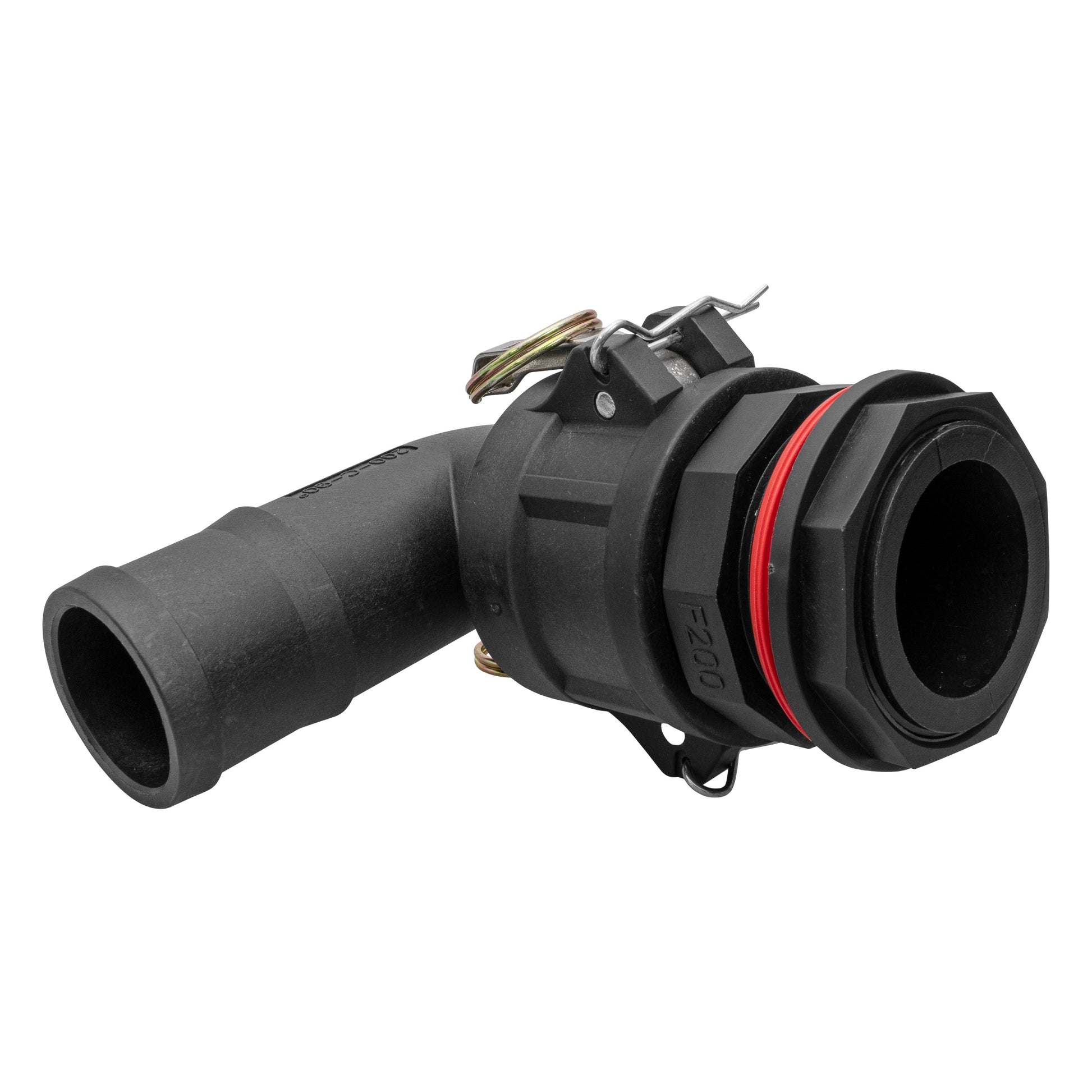

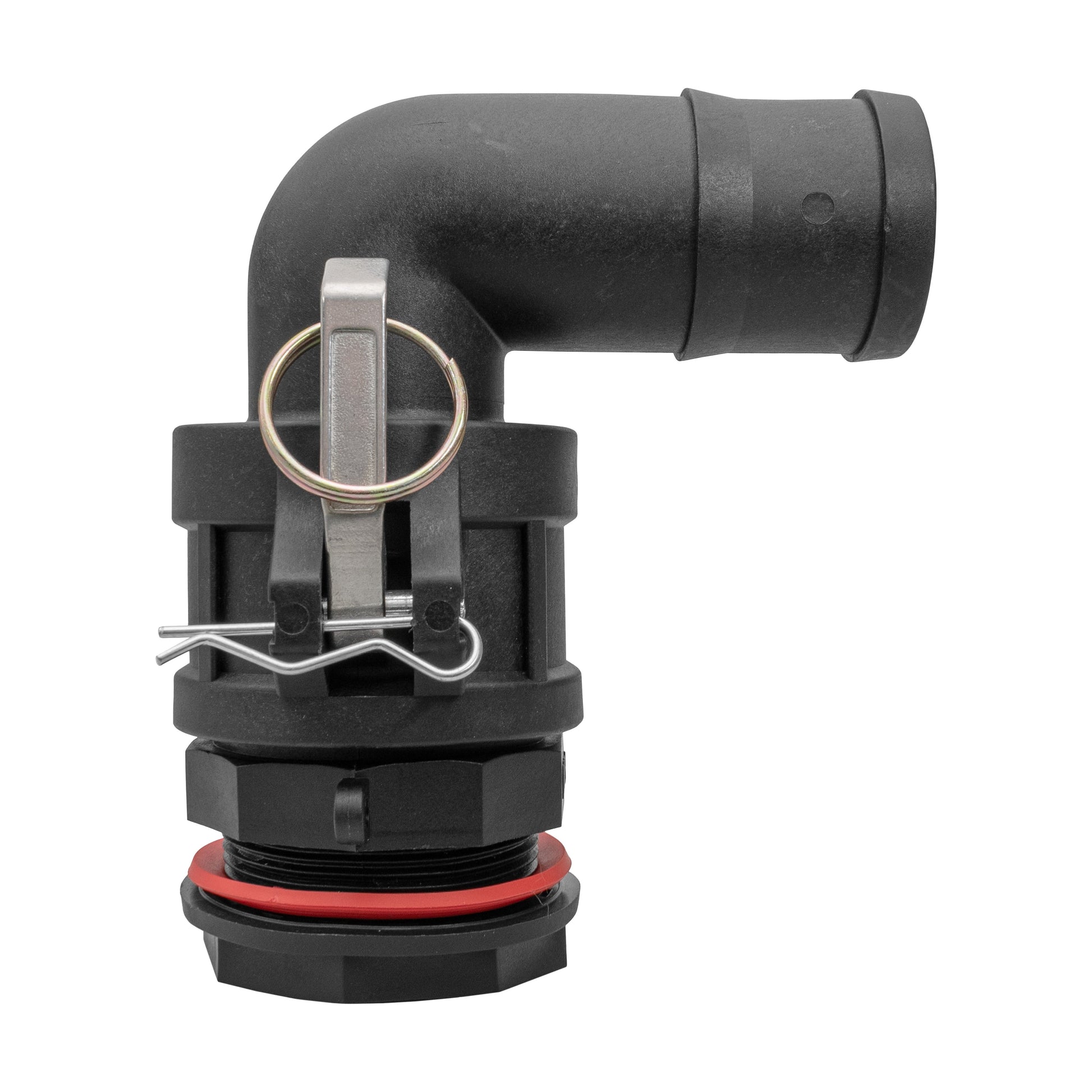

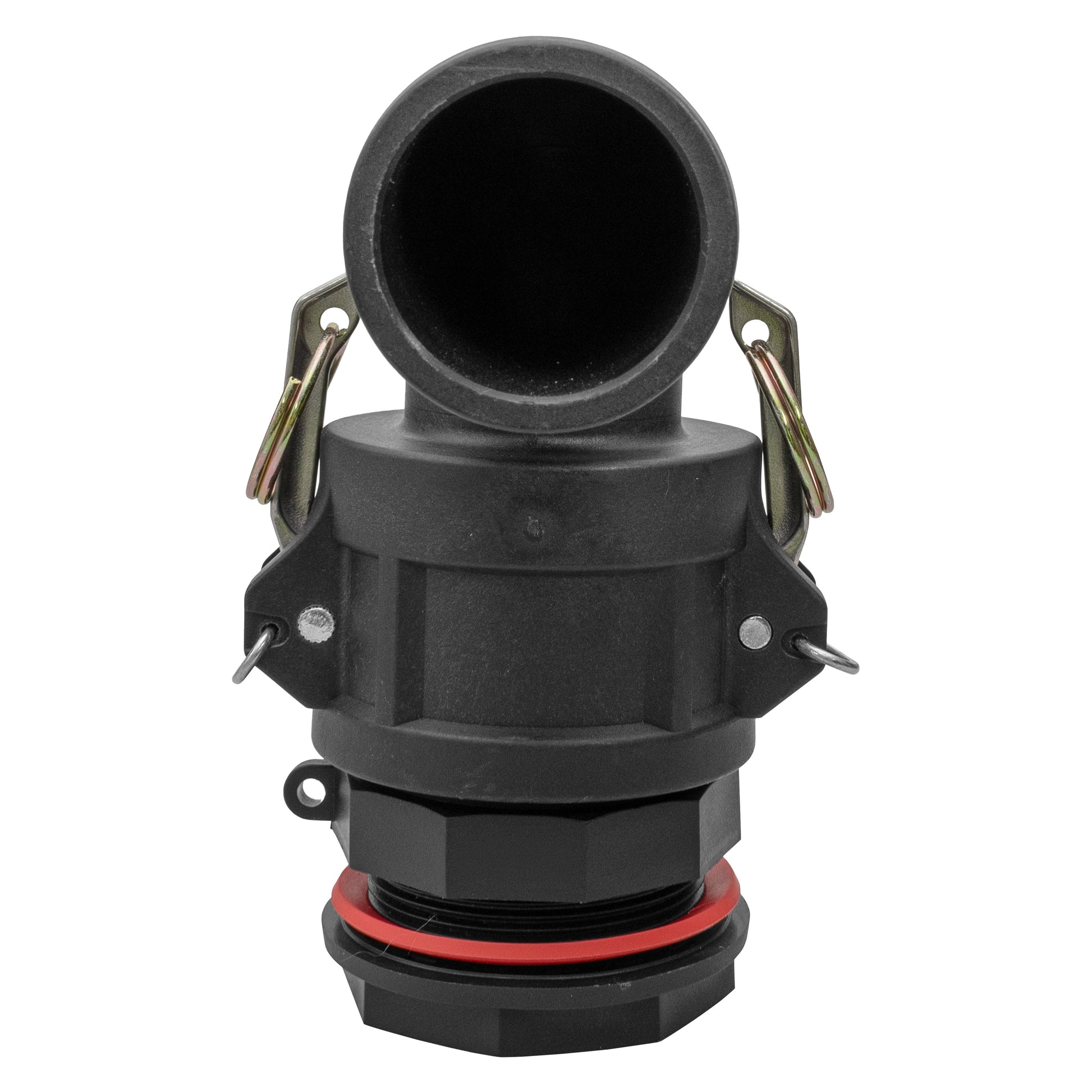

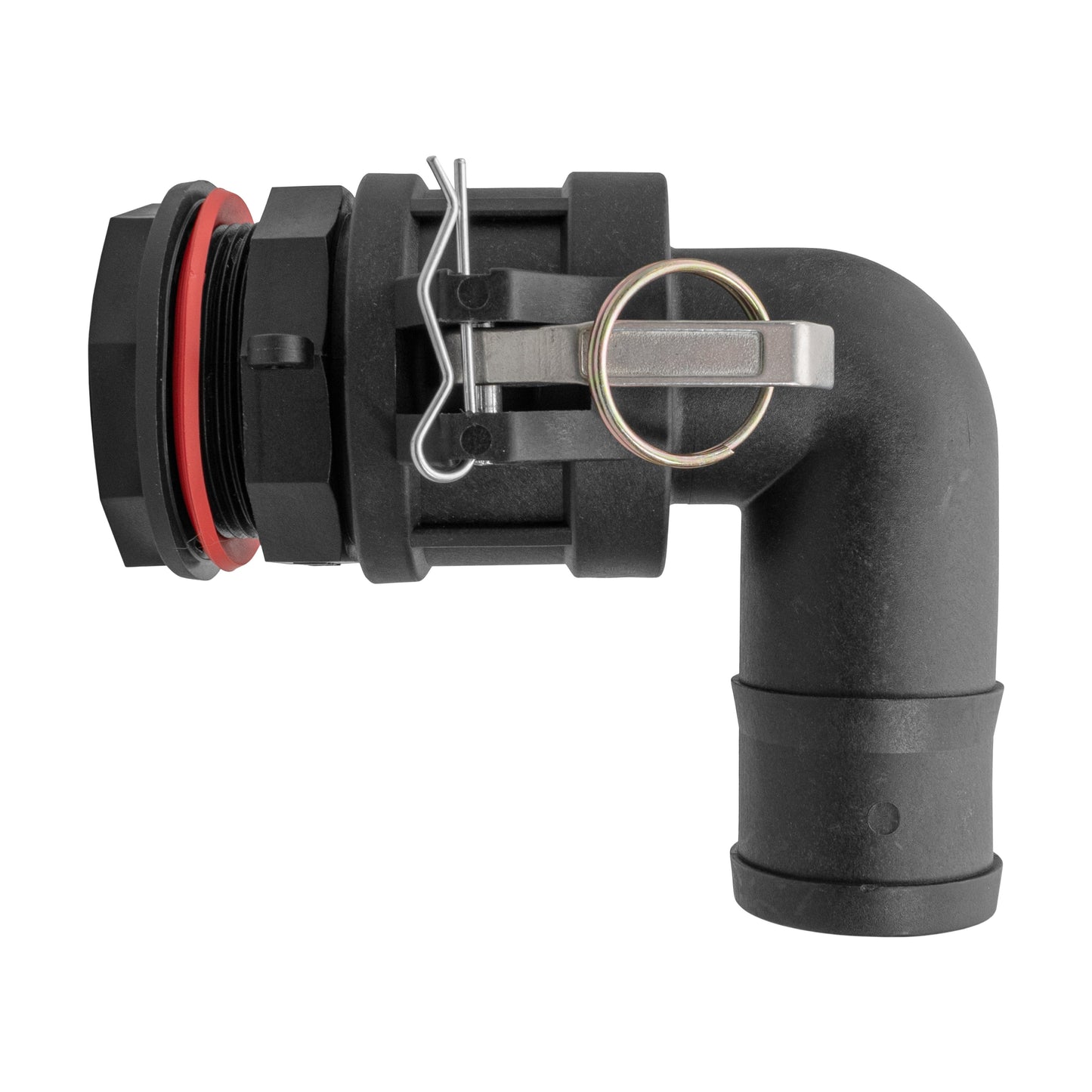

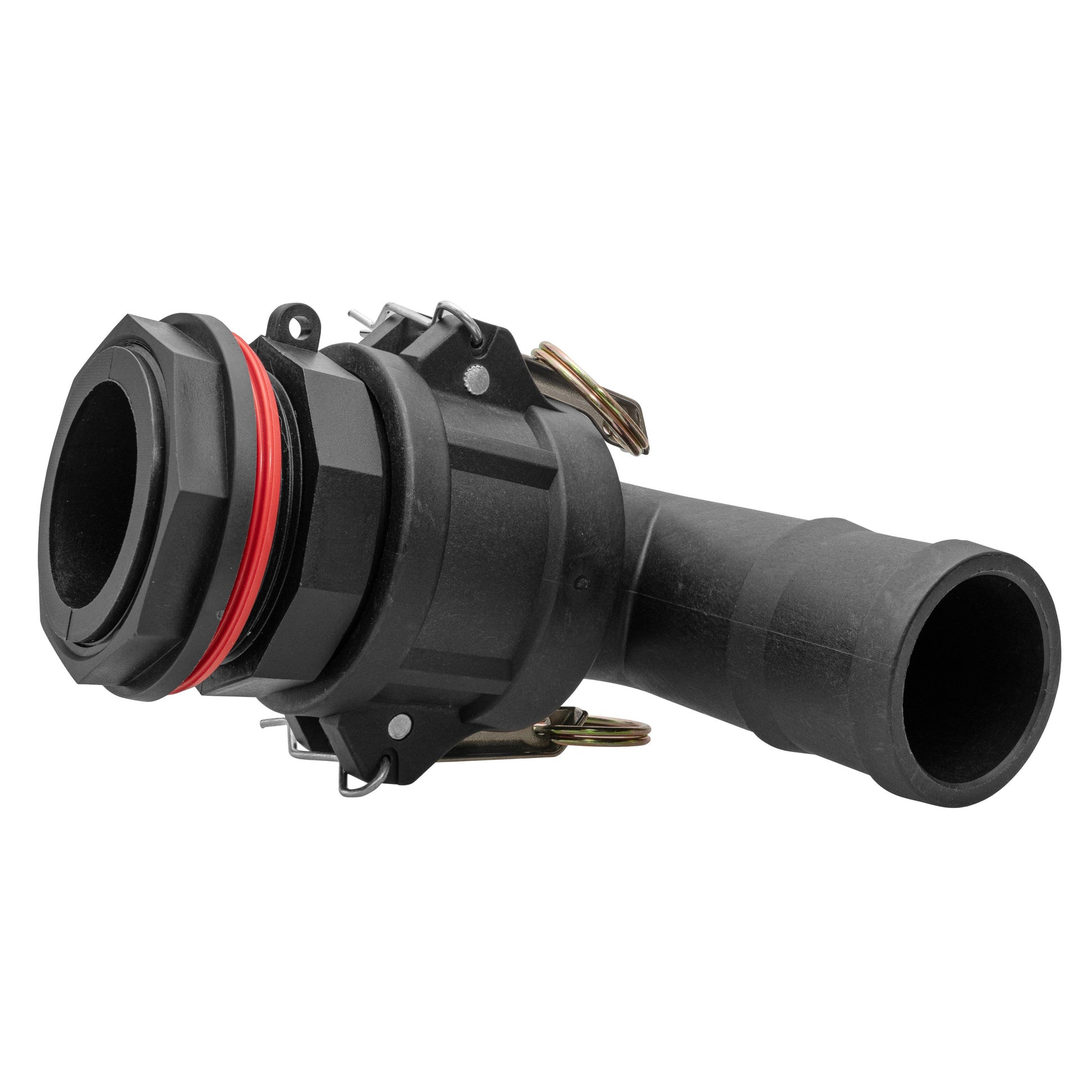

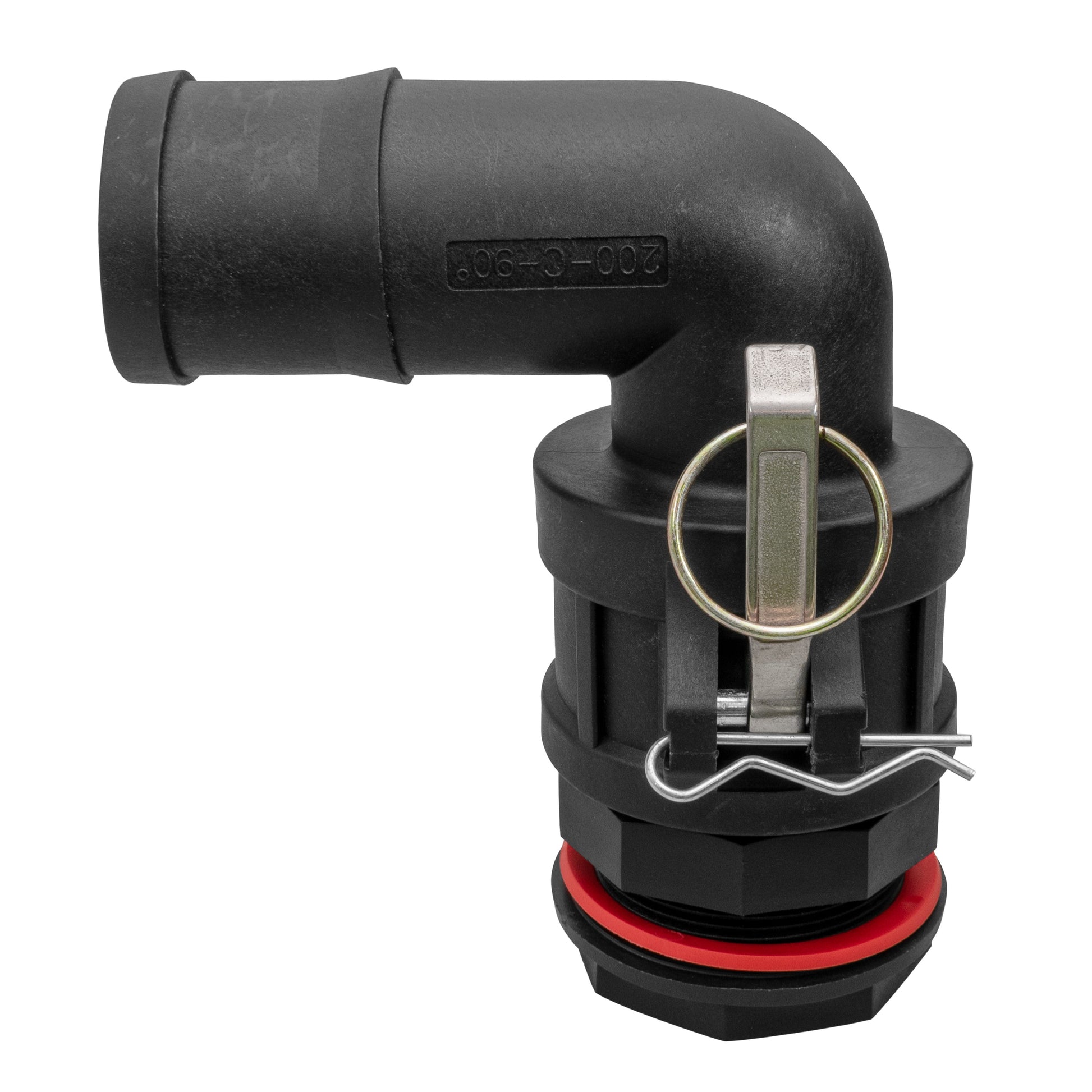

This kit consists of a Type F Camlock adapter, a Type C Elbow Camlock coupler, and a matching-size back nut with sealing washer. Available in sizes from 1/2" to 2", the camlock and BSP thread share the same nominal dimension, ensuring the nut and washer fit perfectly.

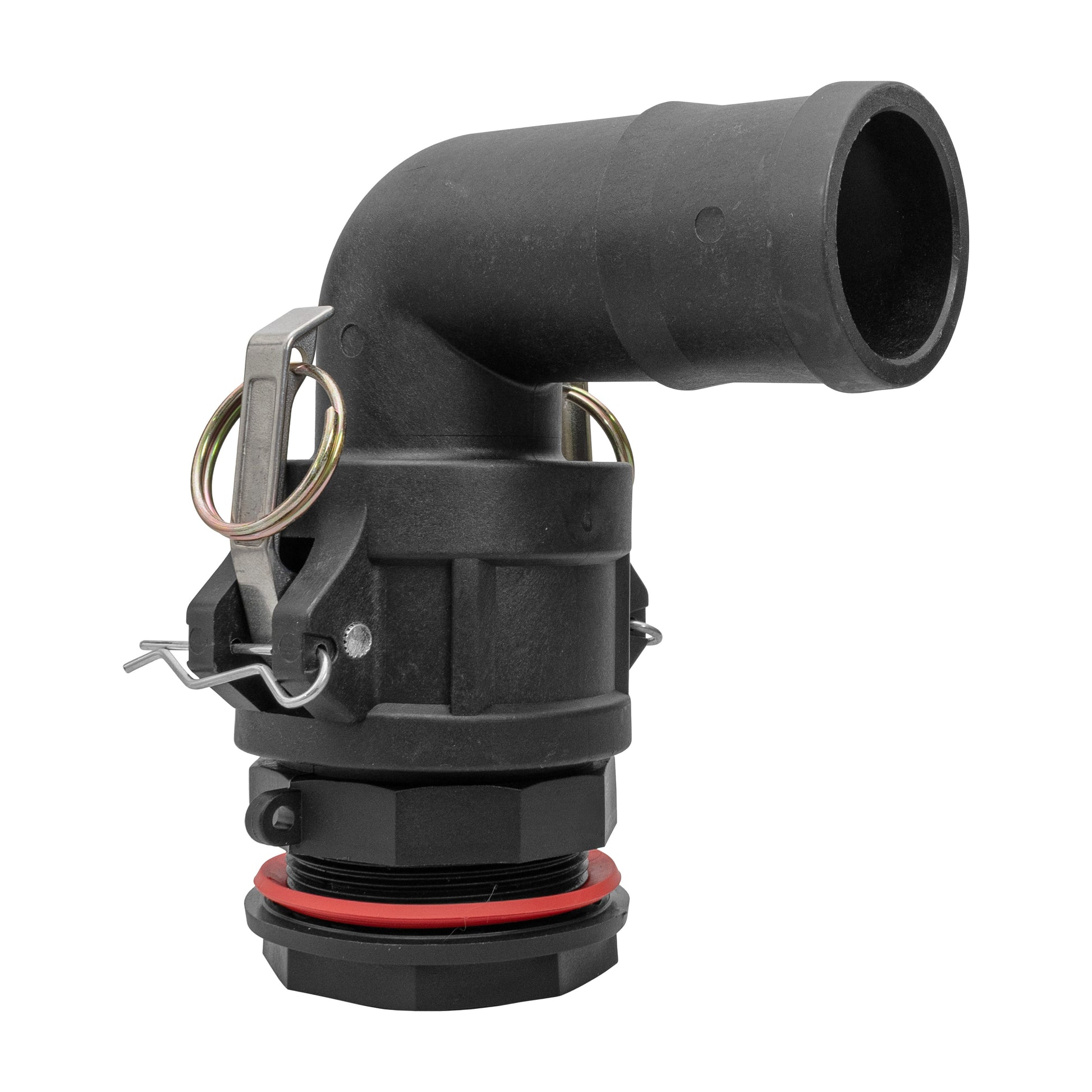

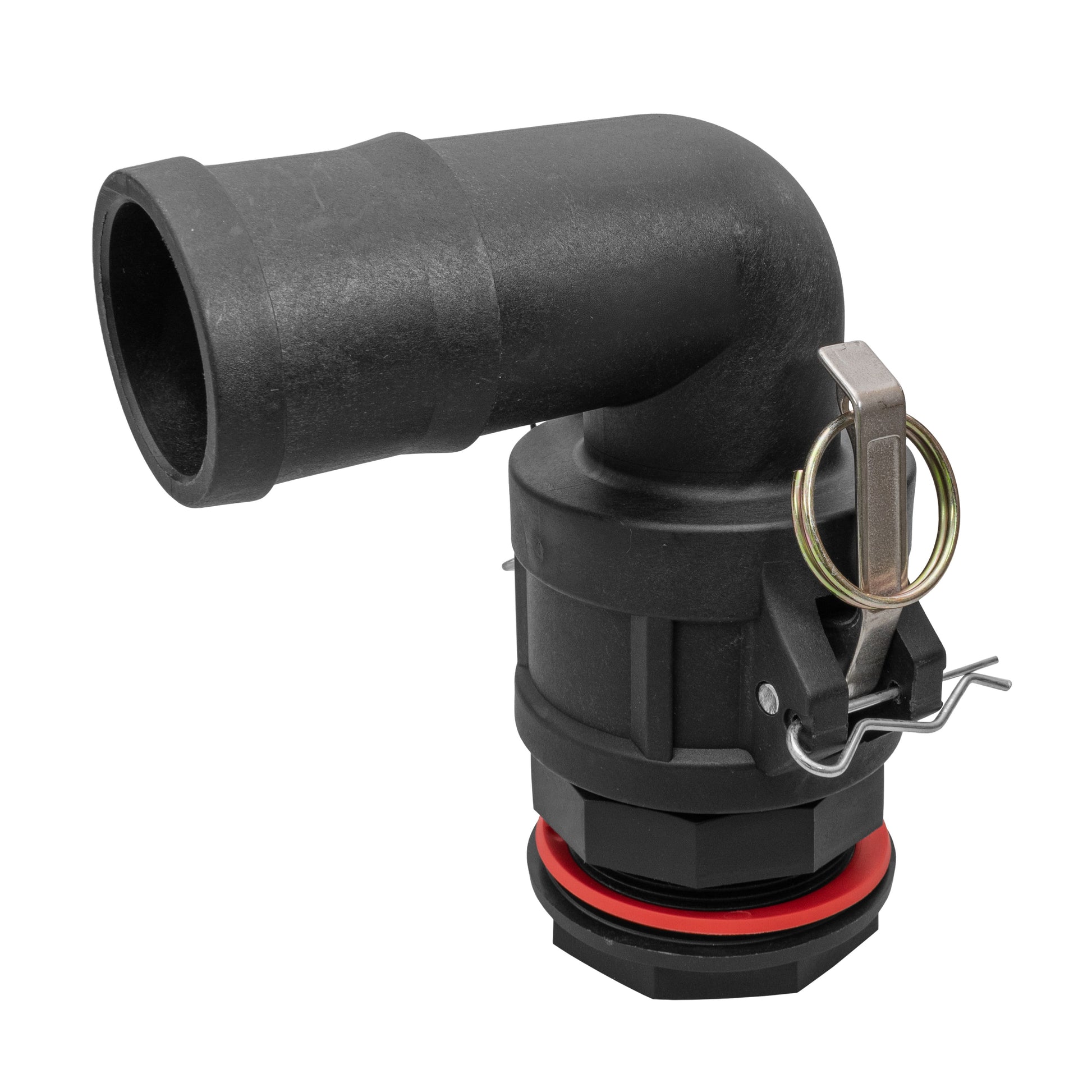

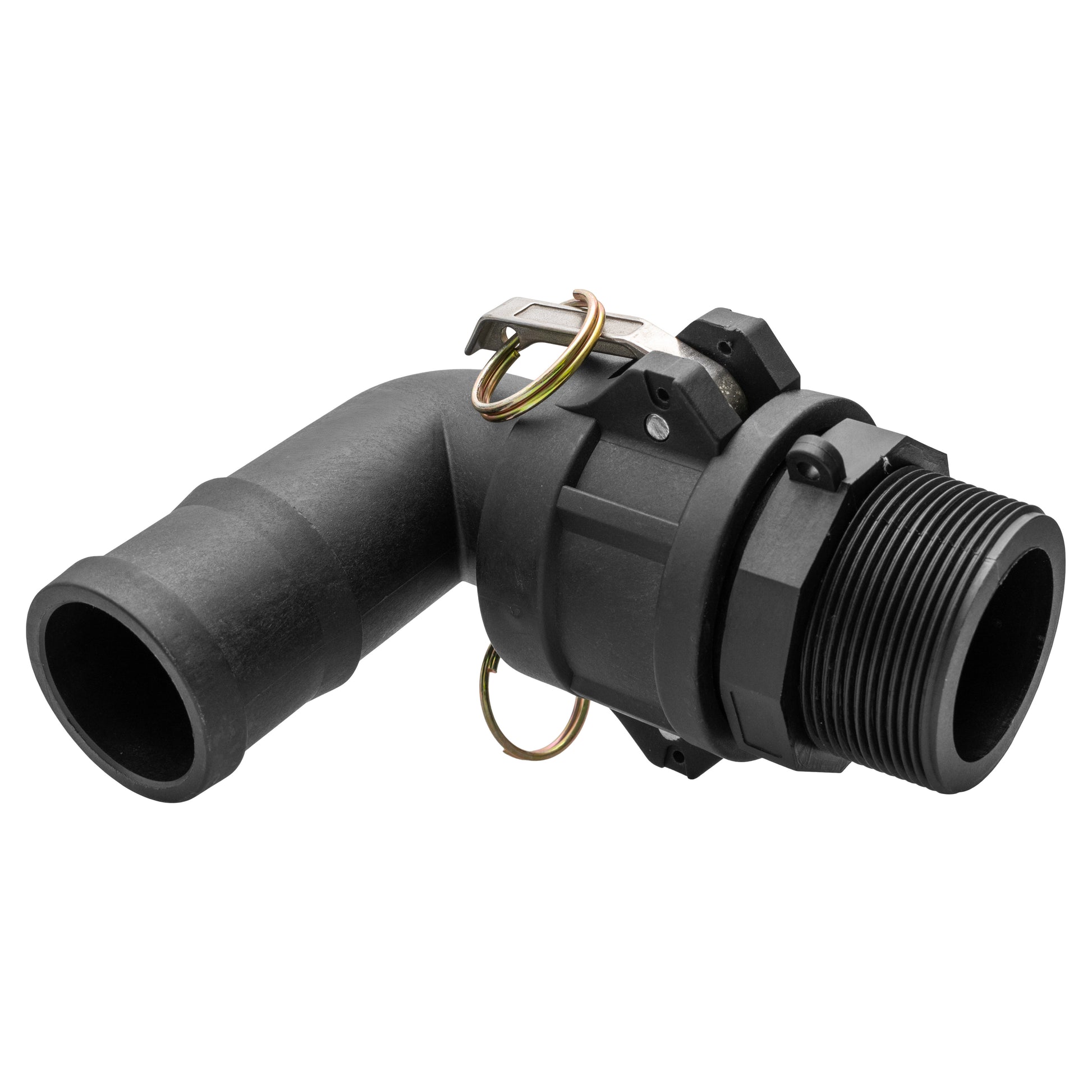

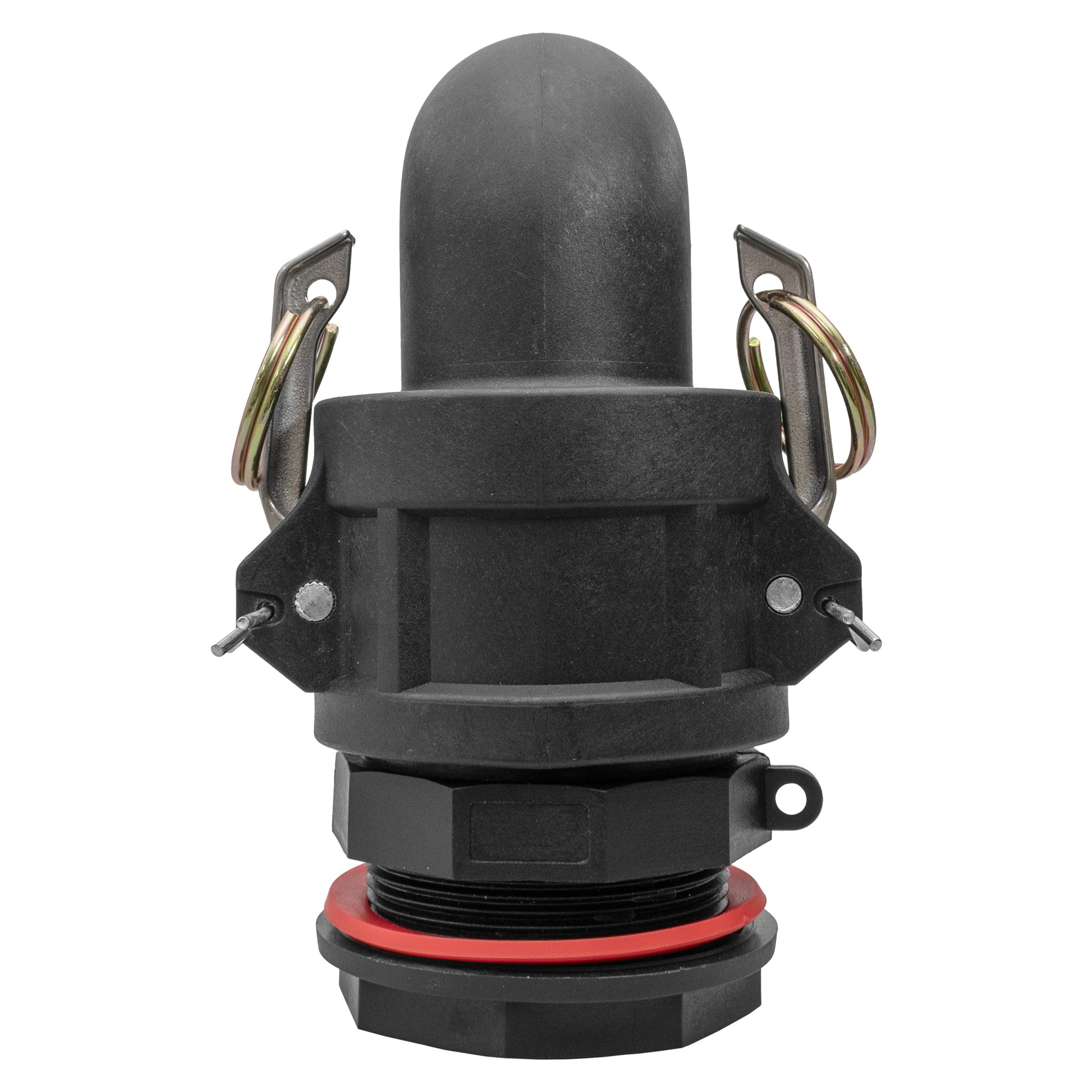

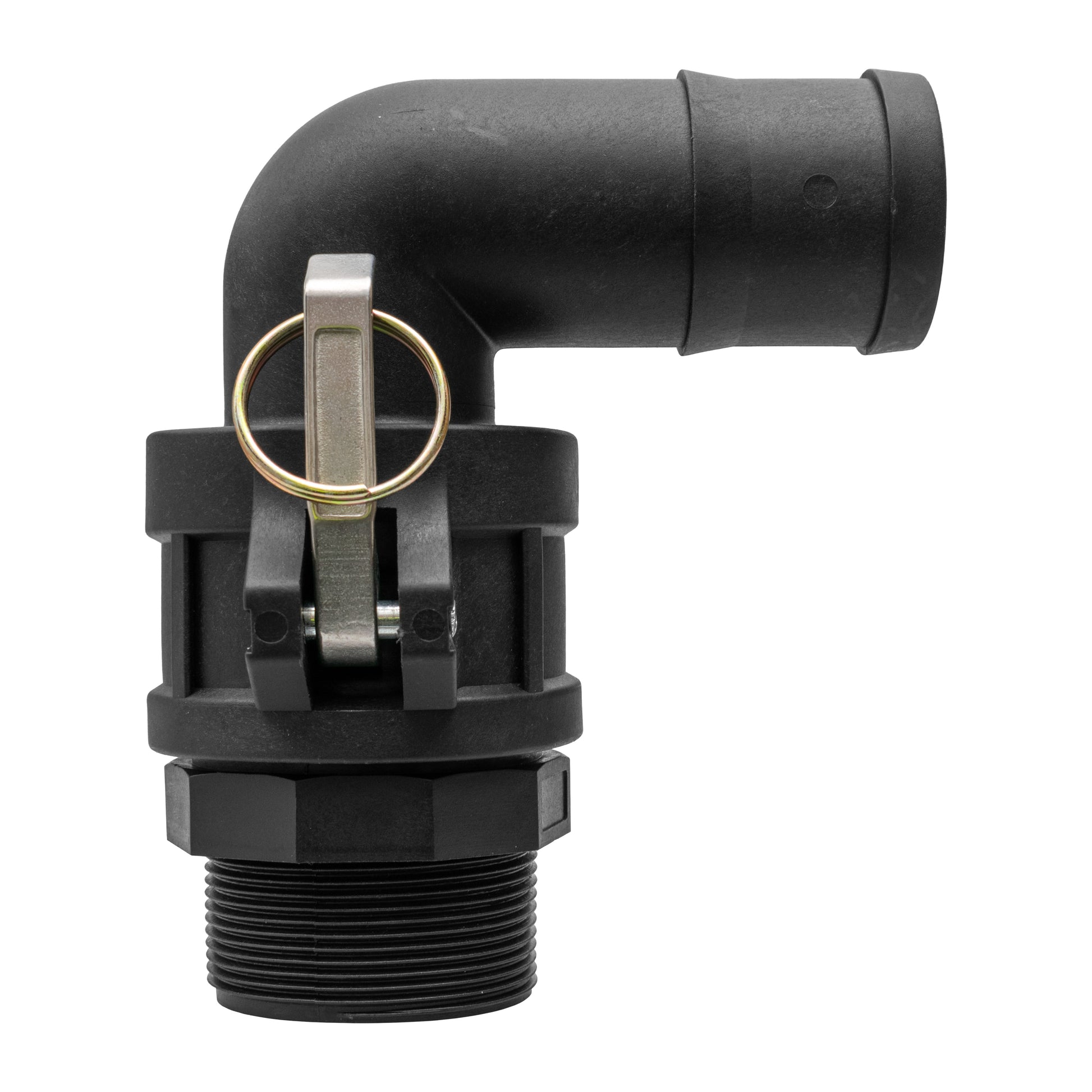

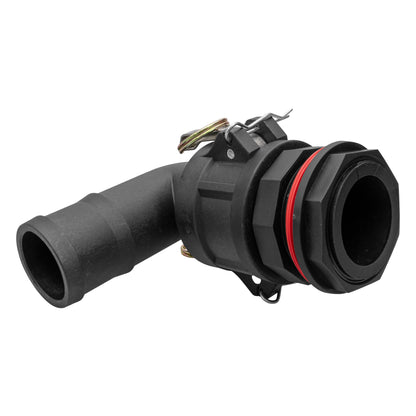

The Type F adapter features a male cam-and-groove end with an integrated BSP male thread—ideal for mounting into a tank or water-butt outlet. The Type C Elbow coupler offers a female cam-and-groove end plus a hose-barb tail at 90°, allowing you to attach flexible hose while changing direction in tight spaces. When combined, the Type F adapter screws into the tank via the back nut and washer, and the Type C Elbow locks onto the adapter’s groove-ring—creating a secure, tool-free, right-angle connection from tank to hose.
Camlock fittings (cam-and-groove couplings) provide rapid assembly and teardown without tools: pull back the spring-loaded cam arms on the Type C Elbow, insert the Type F adapter’s groove-ring, then release to lock a tight, leak-proof seal.
Key Benefits:
-
Quick & Easy: Fast, tool-free coupling and uncoupling—perfect for frequent line changes.
-
Secure Seal: Cam arms clamp over the groove to prevent leaks and contamination.
-
Right-Angle Routing: 90° elbow design simplifies directional changes in confined layouts.
-
Durable Construction: Polypropylene body resists chemicals, UV and corrosion for long service life.
The back nut and washer enable direct threading into any water-butt or tank outlet, delivering a secure, pressure-resistant, watertight connection. Always verify that polypropylene is compatible with your fluid and temperature requirements.

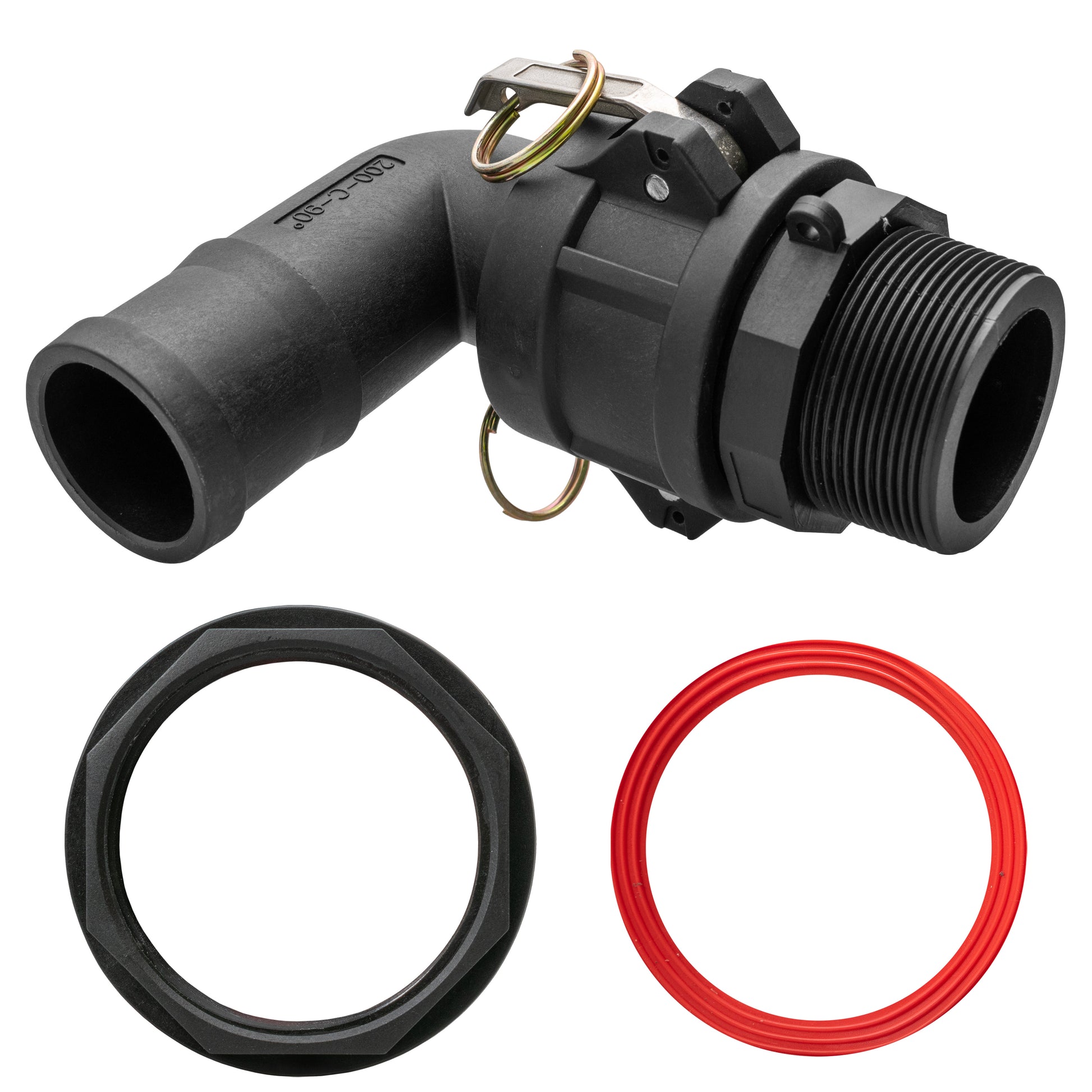

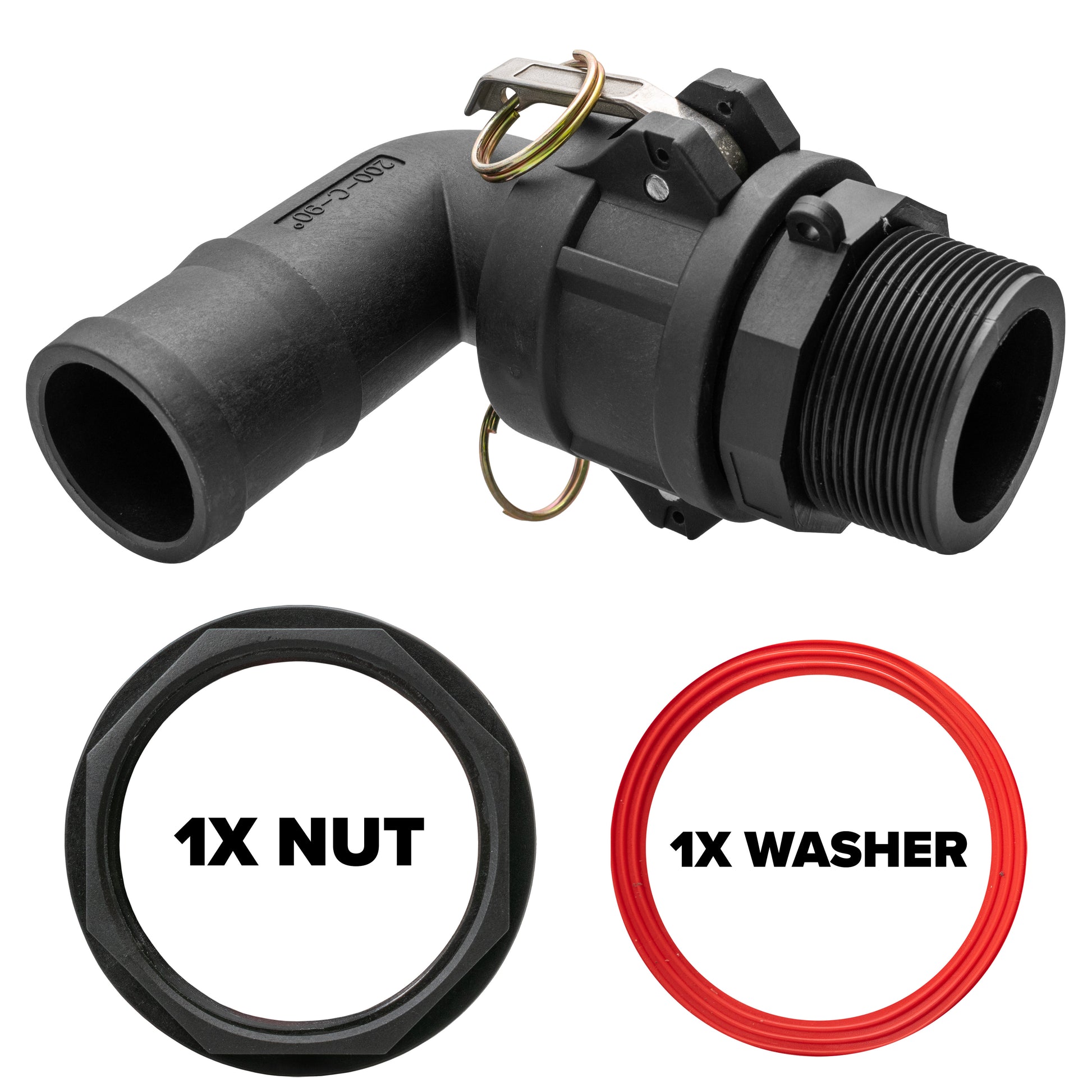

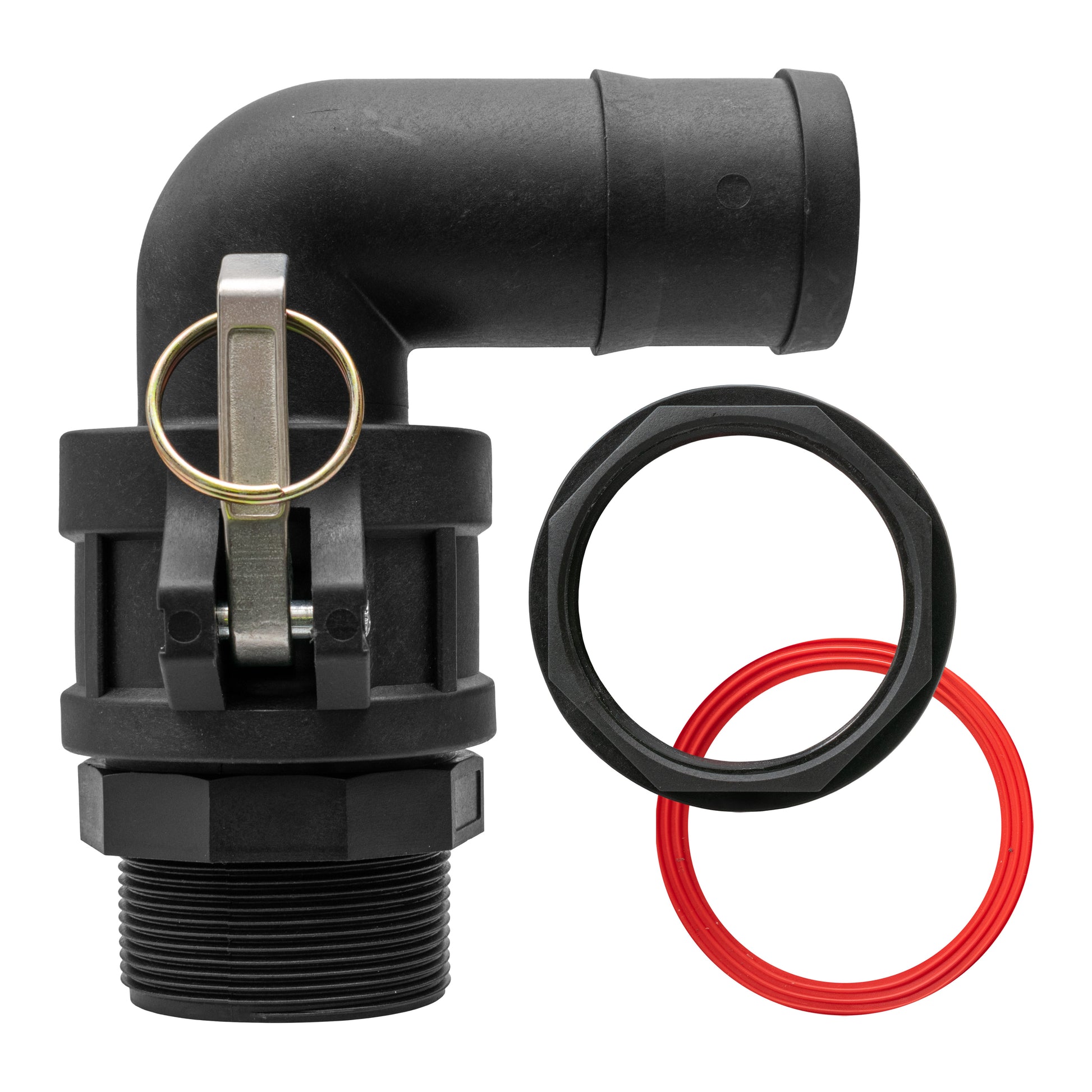

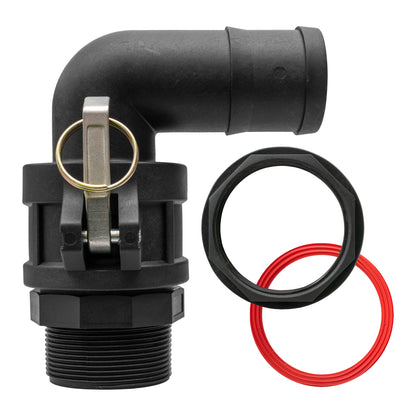

Kit Contents:
- 1 × PP Type F Camlock adapter (male groove + BSP male thread)
- 1 × PP Type C Elbow Camlock coupler (female camlock + 90° hose barb tail)

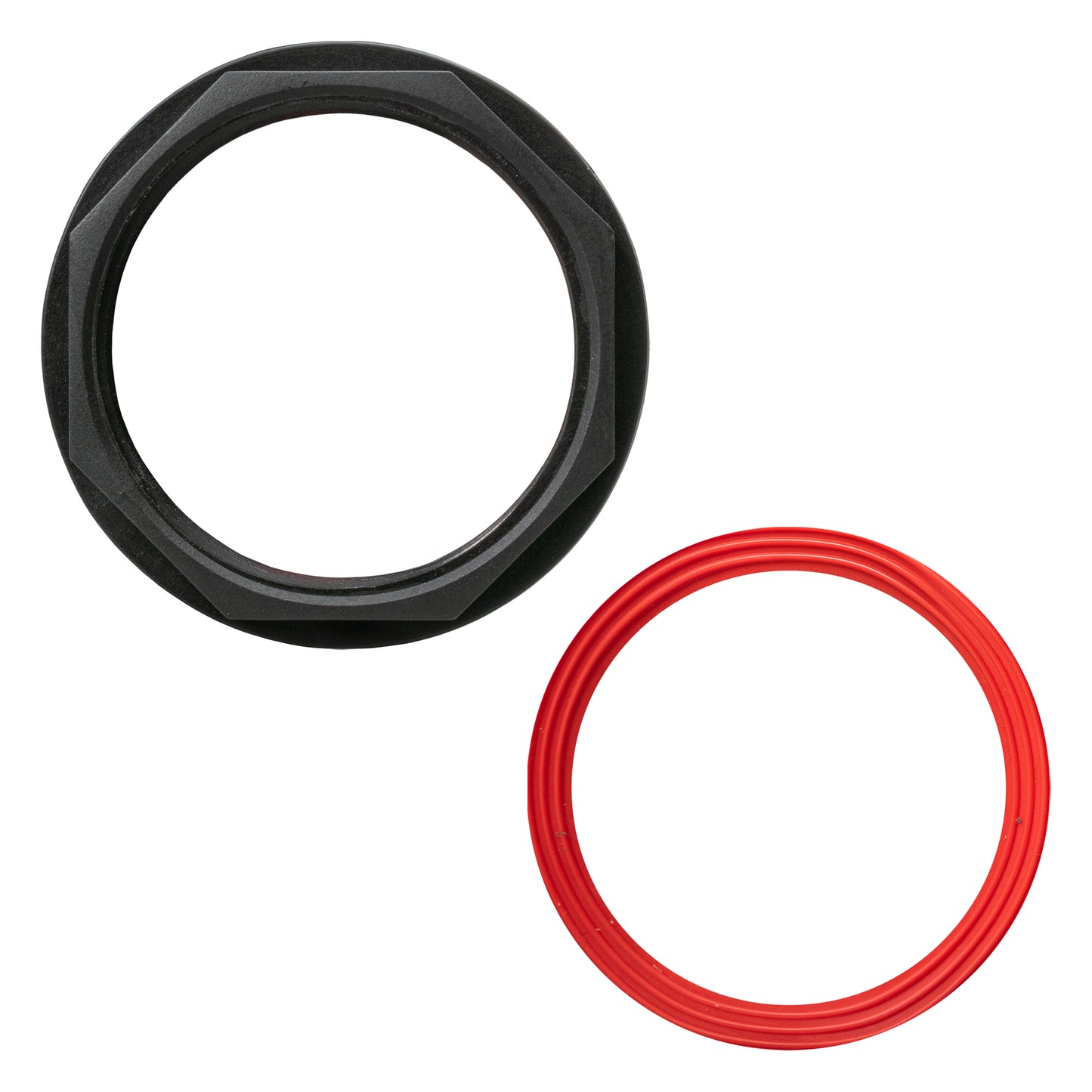

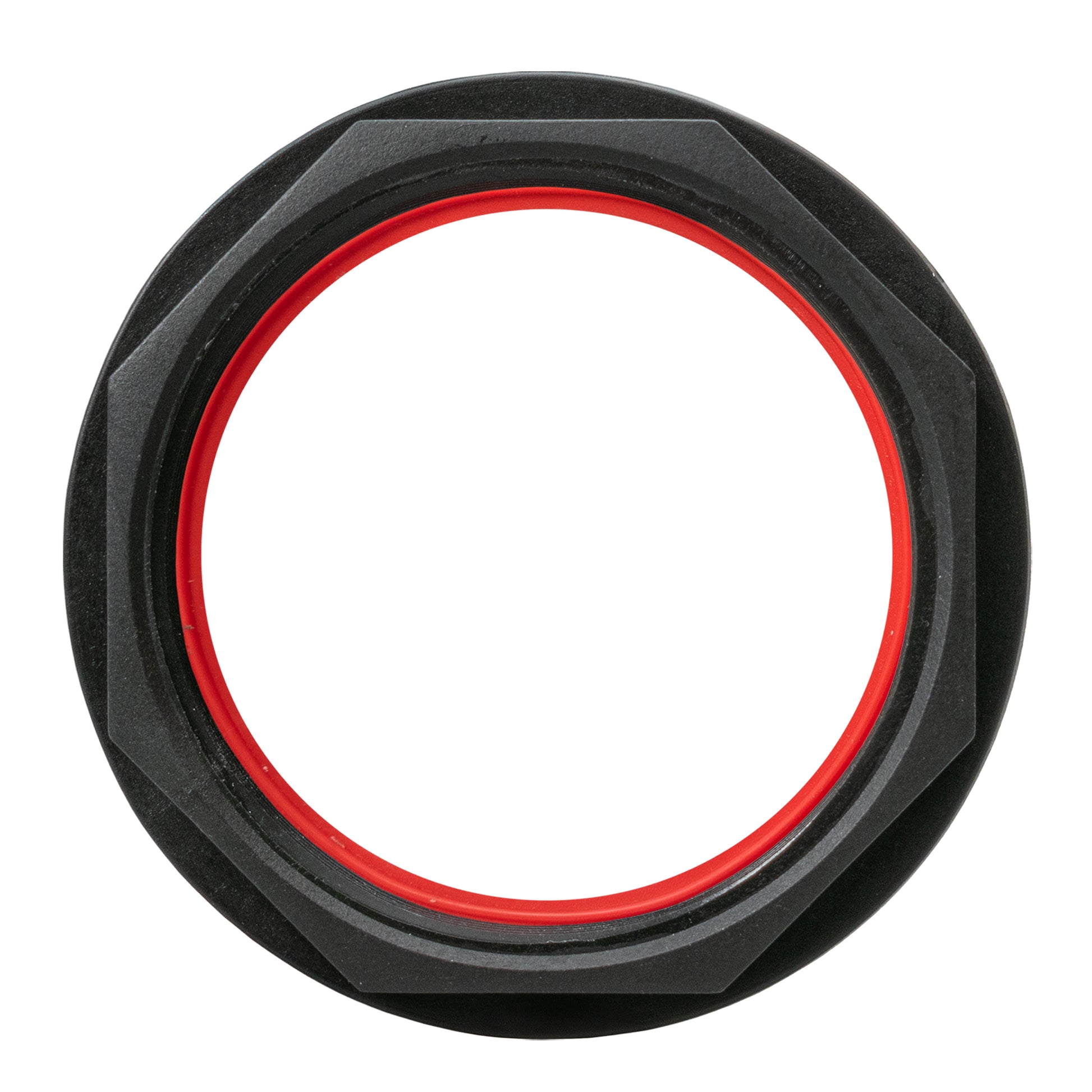

- 1 × matching back nut
- 1 × sealing washer
