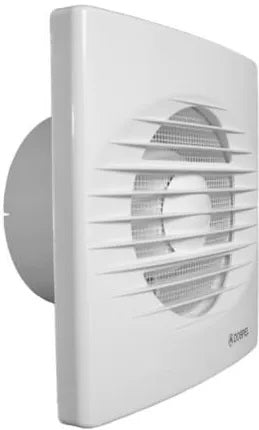

Rico Bathroom Fan 120mm Model with a Pull-Cord Switch

This Rico 120 mm Pull-Cord Axial Fan is engineered from white ABS plastic to deliver efficient, unobtrusive ventilation in homes, offices or light-industrial spaces. Its compact, wall- or duct-mounted design blends seamlessly with any interior décor while providing reliable air extraction at the pull of a cord.

Rated IPX4 for protection against water splashes and Class II insulated for enhanced electrical safety, it’s built for low-maintenance, continuous operation. A built-in pull-cord switch offers simple on/off control without extra wiring, and sleeve bearings ensure smooth, quiet performance. The high-speed motor (2 650 rpm) draws just 0.13 A at 17 W, making it energy-efficient and dependable up to 40 °C ambient.

Key Features & Performance

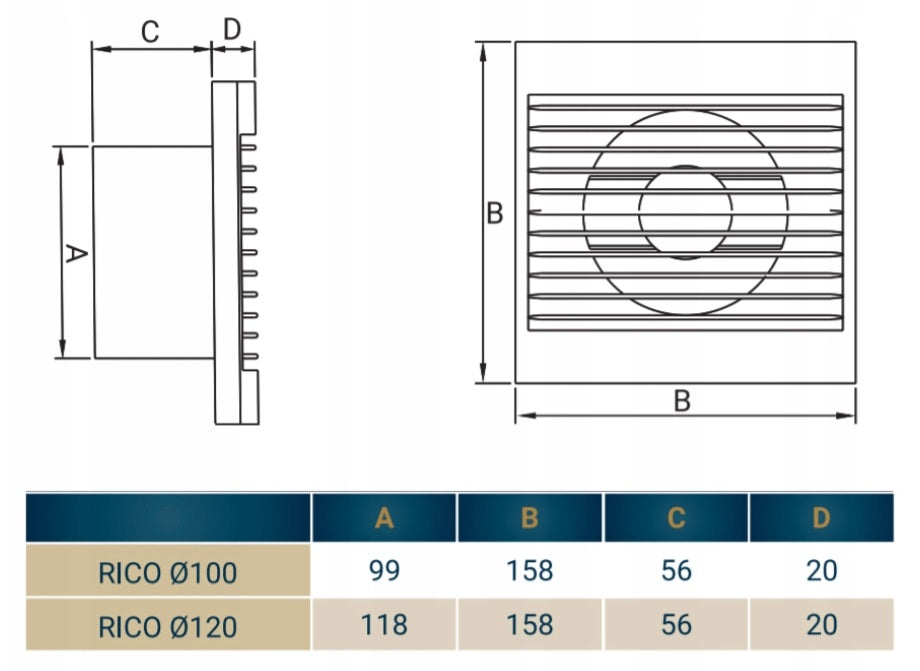

• Size: 120 mm diameter for easy integration into standard ductwork.
• Pull-cord control: Integrated cord switch for straightforward on/off operation.
• Airflow: 150 m³/h at 0 Pa static pressure.
• Static pressure: 49 Pa (4.99 mm H₂O) maximum.
• Acoustic level: 46 dB(A) at typical operating point.
• Motor specs: 2 650 rpm, 17 W power consumption, 0.13 A current draw.
• Protection: IPX4 splash-proof rating.
• Insulation: Class II—no earth connection required.
• Bearing type: Sleeve bearings for quiet, low-maintenance operation.
• Temperature rating: Reliable performance up to 40 °C ambient.
