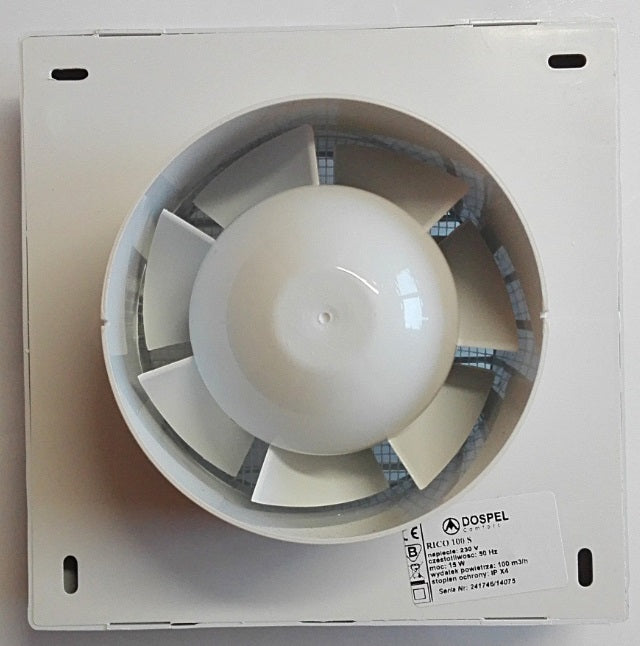

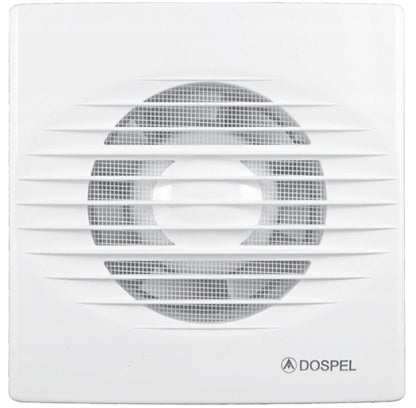

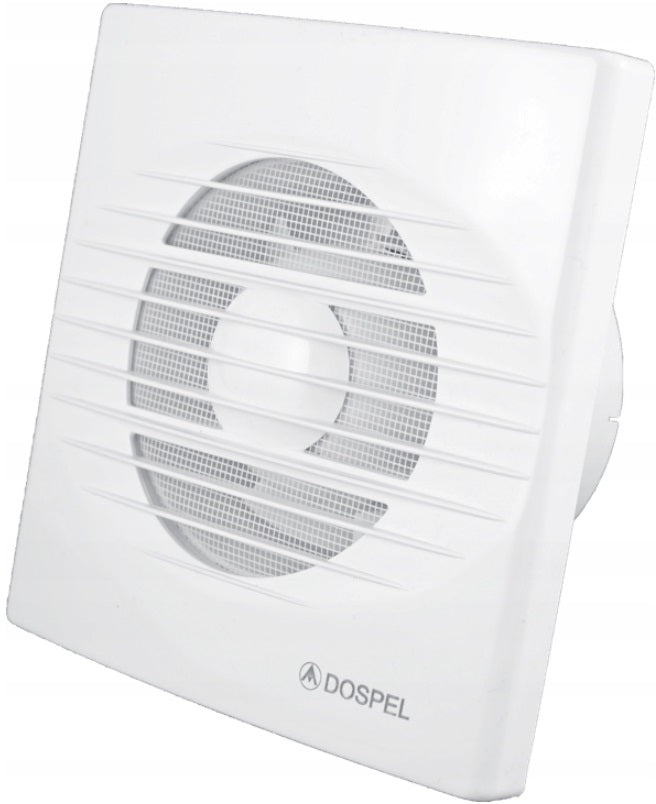

This Rico Ø120 Timer Axial Fan is engineered from white ABS plastic to deliver efficient, unobtrusive ventilation in homes, offices or light-industrial spaces. Its compact, wall- or duct-mounted design blends seamlessly with any interior décor while providing reliable air extraction.

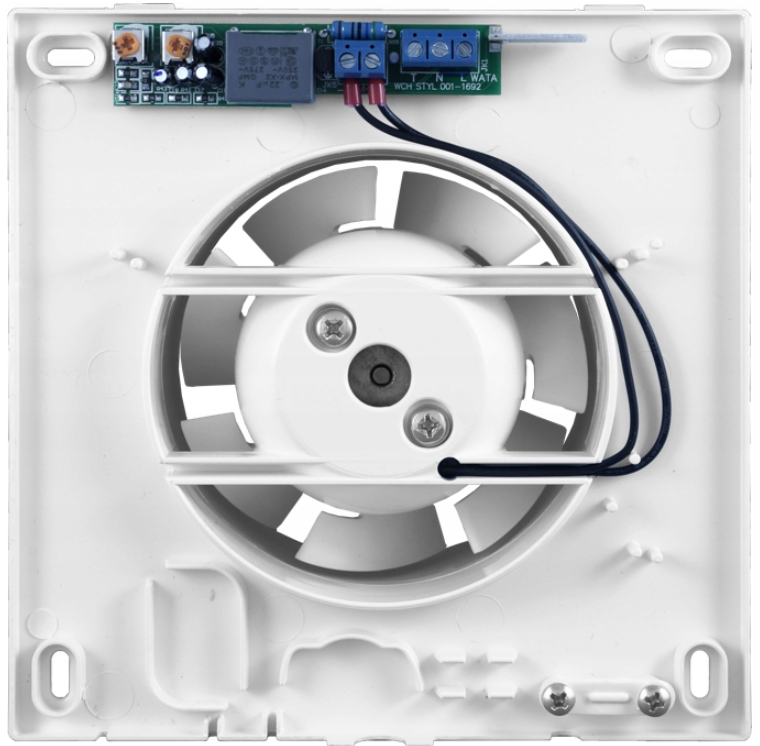

Featuring an adjustable built-in timer, the fan continues to run for your selected interval (2–30 minutes) after the light or switch is turned off, then shuts off automatically—eliminating unnecessary energy use. Rated IP X4 for protection against water splashes and Class II insulated for enhanced electrical safety, it’s built for low-maintenance operation even in humid or splash-prone environments.
Sleeve bearings ensure smooth, quiet performance, and the high-speed motor (2 650 rpm) draws just 0.13 A at 17 W, making it both energy-efficient and dependable up to 40 °C ambient.
Key Features & Performance
-

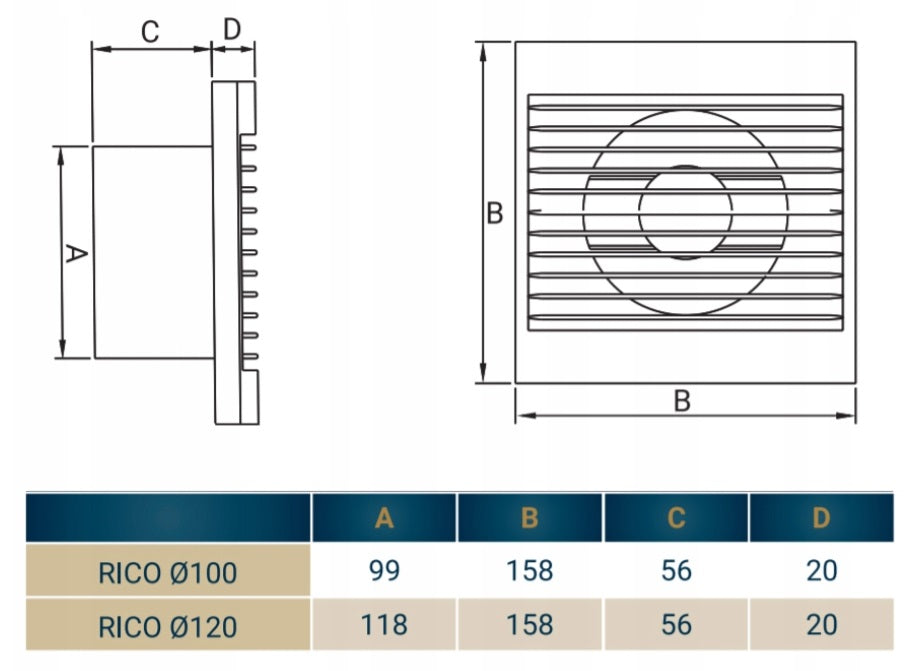

Size: 120 mm diameter for easy integration into standard ductwork.
-
Timer function: Adjustable 2–30 minute overrun for automatic shut-off.
-
Airflow: 150 m³/h at 0 Pa static pressure.
-
Static pressure: 49 Pa (4.99 mm H₂O) maximum.
-
Acoustic level: 46 dB(A) at typical operating point.
-
Motor specs: 2 650 rpm, 17 W power consumption, 0.13 A current draw.
-
Protection: IP X4 splash-proof rating.
-
Insulation: Class II—no earth connection required.
-
Bearing type: Sleeve bearings for quiet, low-maintenance operation.
-
Temperature rating: Reliable performance up to 40 °C ambient.
