MDPE Straight Reducer Connector, 32mm - 20mm

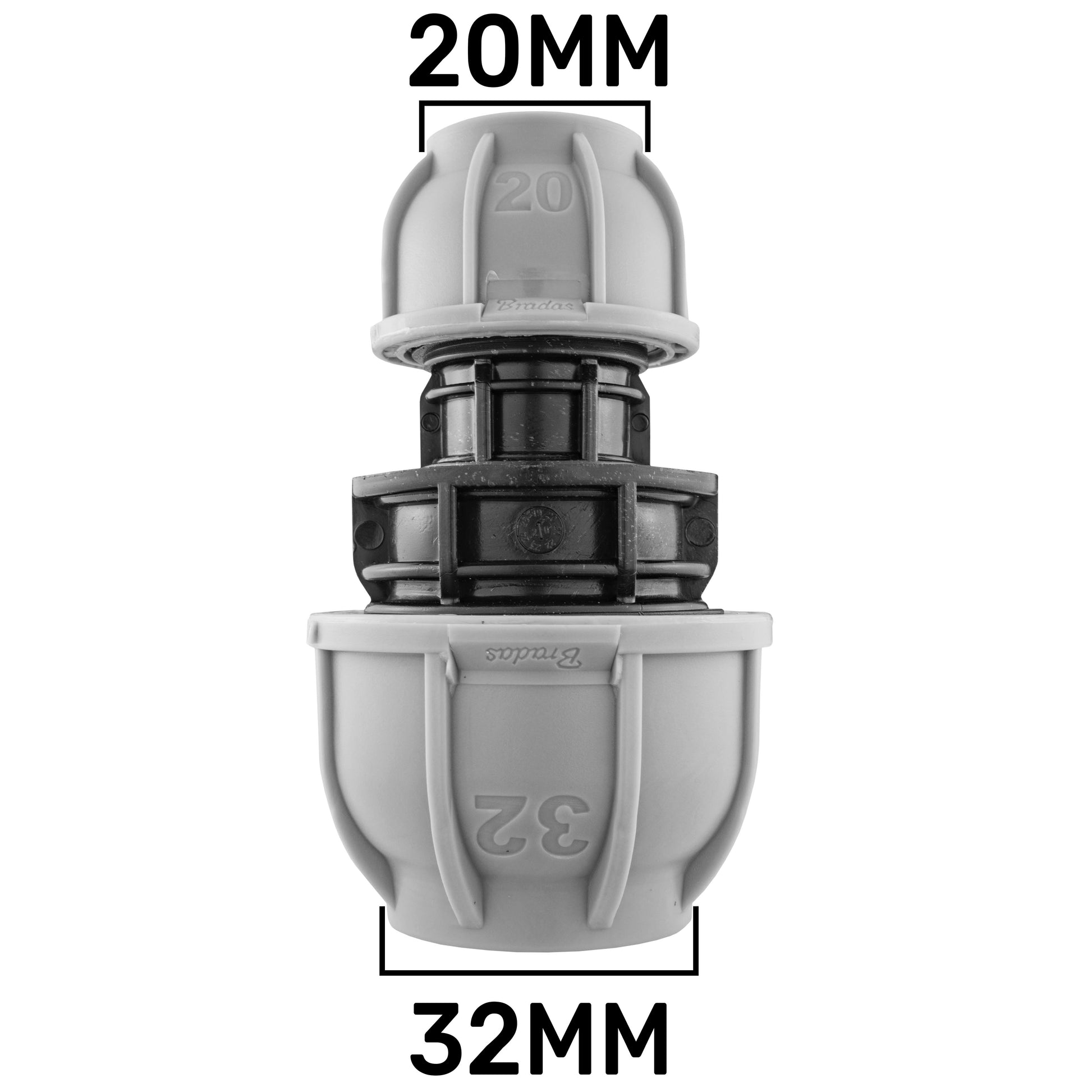

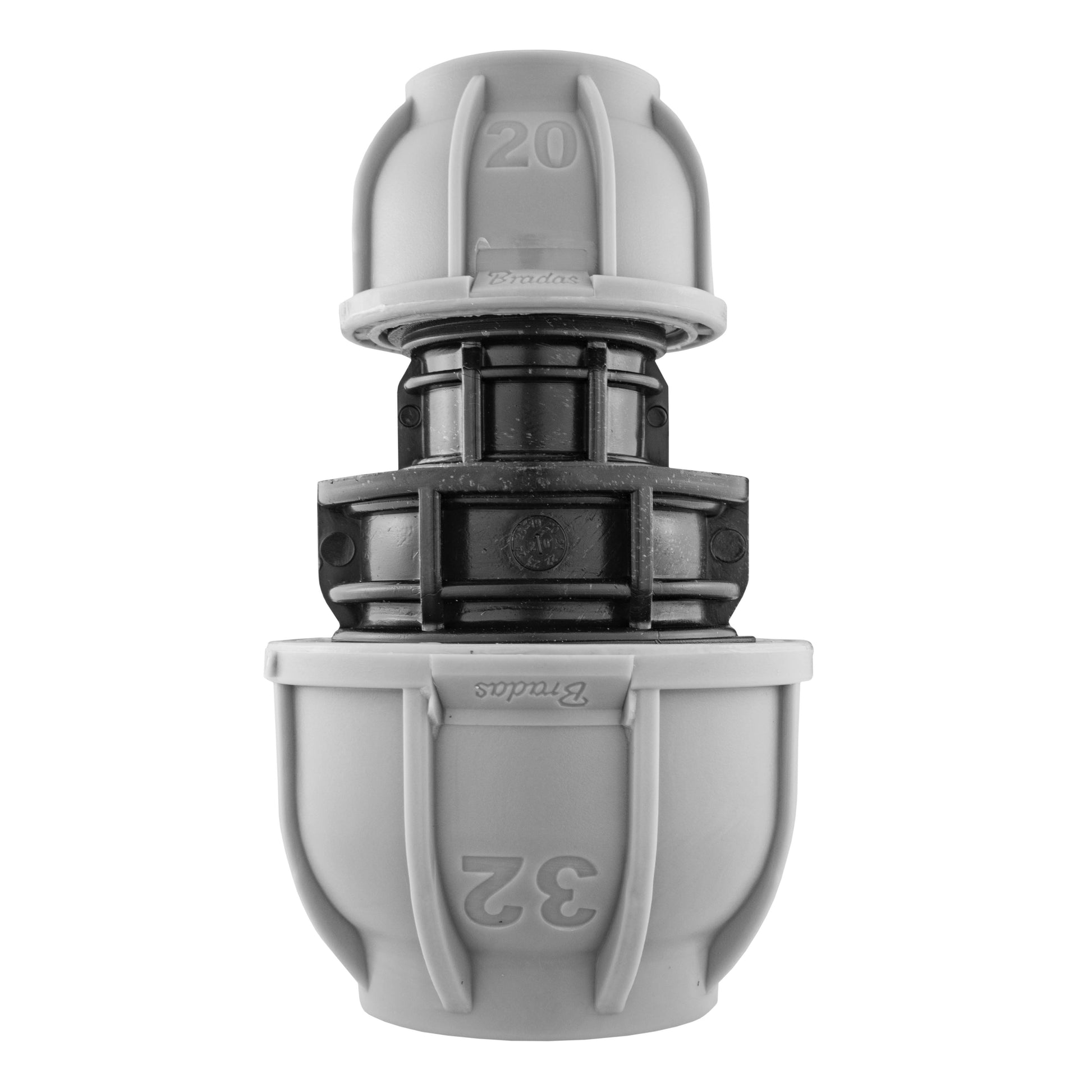

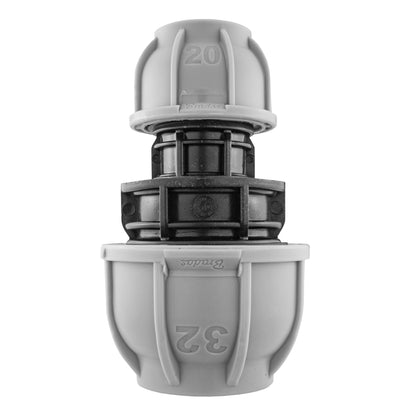

This is a 32 mm × 20 mm Reducing Straight Joiner Compression Fitting for MDPE pipe, rated PN10 (up to 10 bar/145 psi). Cast from tough polyethylene (PE), it links 32 mm mains to 20 mm branch lines without fusion welding.

Insert the 32 mm pipe into one end and the 20 mm into the other, then hand-tighten the two compression nuts. Internal O-rings create a tight, leak-free seal around each pipe. The straight-through design ensures minimal turbulence when dropping down in diameter.

Key Features

• PN10 Rating: Handles pressures up to 10 bar (145 psi).
• Polyethylene Body: Chemical- and UV-resistant for long service life.
• Reliable Compression Joints: O-ring seals compressed by hand-tightened collars.
• No Tools Needed: Fast installation and maintenance without special equipment.
• Hydraulic Efficiency: Straight bore reduces head loss when downsizing.
