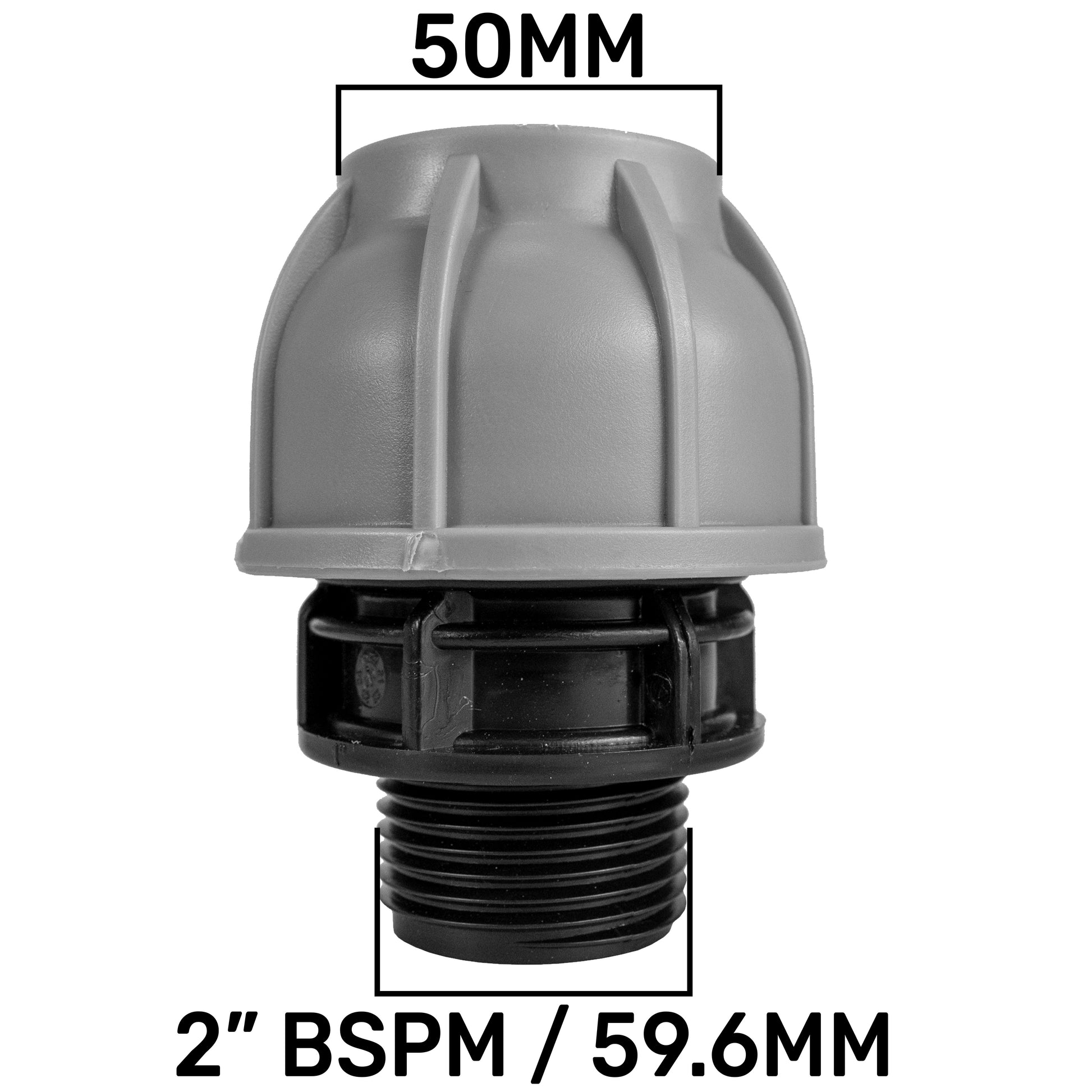

MDPE Straight Connector Coupling, 50mm - 2" BSPM

This is a Straight Connector Compression Coupling designed to join 50 mm MDPE pipe to a 2" BSP male thread, rated PN10 for up to 10 bar (145 psi). The fitting body is moulded from tough polyethylene (PE), offering excellent chemical resistance and UV stability.

To install, push your 50 mm MDPE pipe into the compression end until it seats, then hand-tighten the collar to compress the internal O-ring and create a secure, leak-free seal. The opposite end features a 2" BSP male thread for direct connection to any female-threaded valve, tap or fitting—no adapters required.

Key Features

• PN10 Pressure Rating: Certified for up to 10 bar (145 psi) in water supply, irrigation and industrial systems.
• Polyethylene Construction: Durable, UV-stable and corrosion-resistant for long service life.
• Leak-Free Compression Seal: Hand-tightened collar compresses an O-ring onto the 50 mm pipe OD.
• BSPM Connection: 2" BSP male thread mates directly with standard female fittings—no extra parts needed.
• Tool-Free Installation: No fusion or solvent welding required—quick field assembly and maintenance.
• Straight-Through Design: Maintains a consistent bore to minimise hydraulic losses at the joint.
