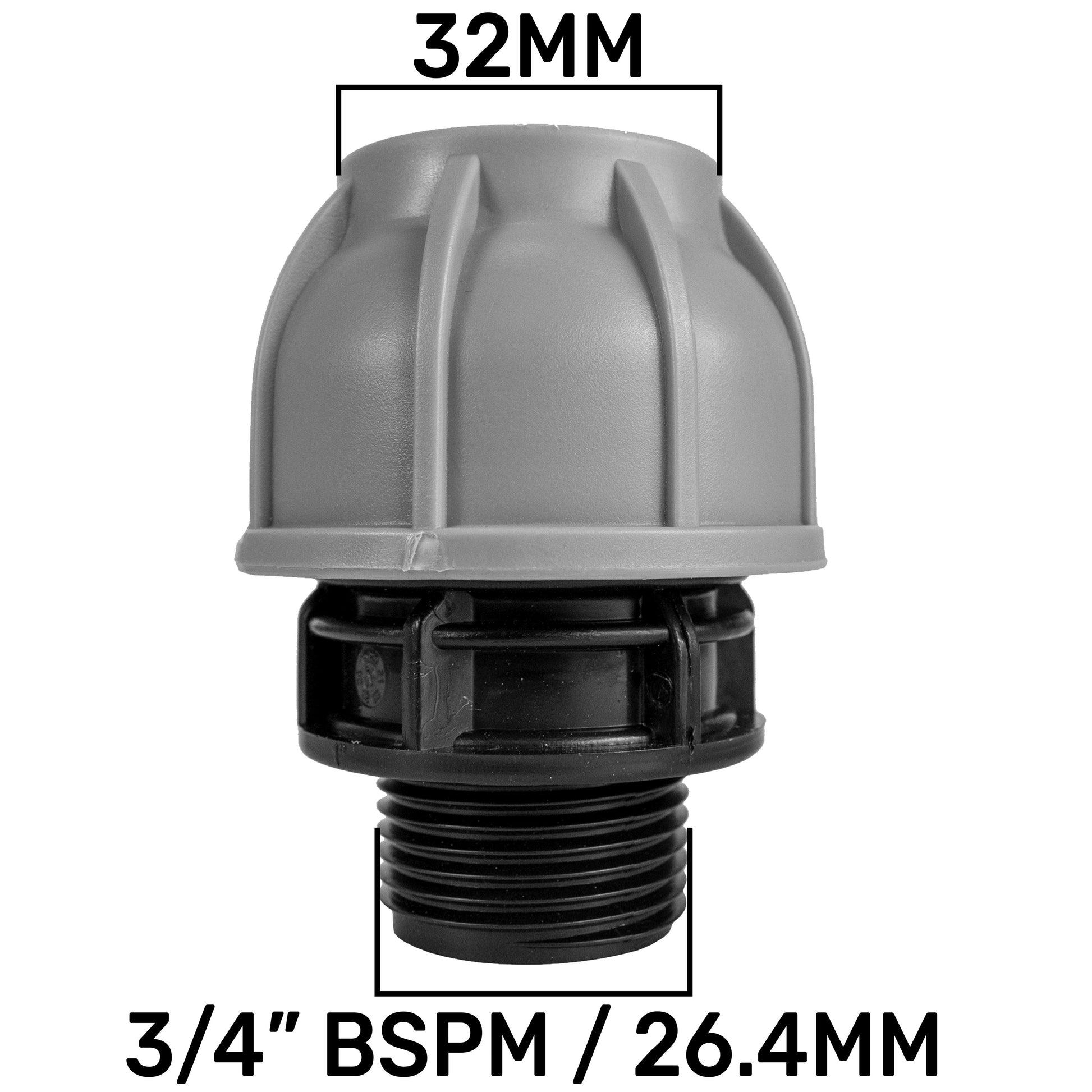

MDPE Straight Connector Coupling, 32mm - 3/4" BSPM

This is a Straight Connector Compression Coupling designed to join 32 mm MDPE pipe to a 3/4" BSP male thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). The body is moulded from robust polyethylene (PE), offering excellent chemical resistance and UV stability.

Simply push your 32 mm pipe into the compression end until it seats, then hand-tighten the collar to compress the internal O-ring for a leak-free seal. The opposite end features a 3/4" BSP male thread for direct connection to any female-threaded valve, tap or fitting—no adapters required.

Key Features

• PN10 Pressure Rating: Certified to 10 bar (145 psi) for water supply, irrigation and industrial services.
• Polyethylene Construction: Durable, UV-stable and corrosion-resistant.
• Leak-Free Compression Seal: Hand-tightened collar compresses an O-ring onto the pipe OD.
• BSPM Connection: 3/4" BSP male thread mates directly with standard female fittings.
• Tool-Free Installation: No welding or fusion required—quick field fitment.
• Straight-Through Design: Maintains consistent flow with minimal pressure loss.
