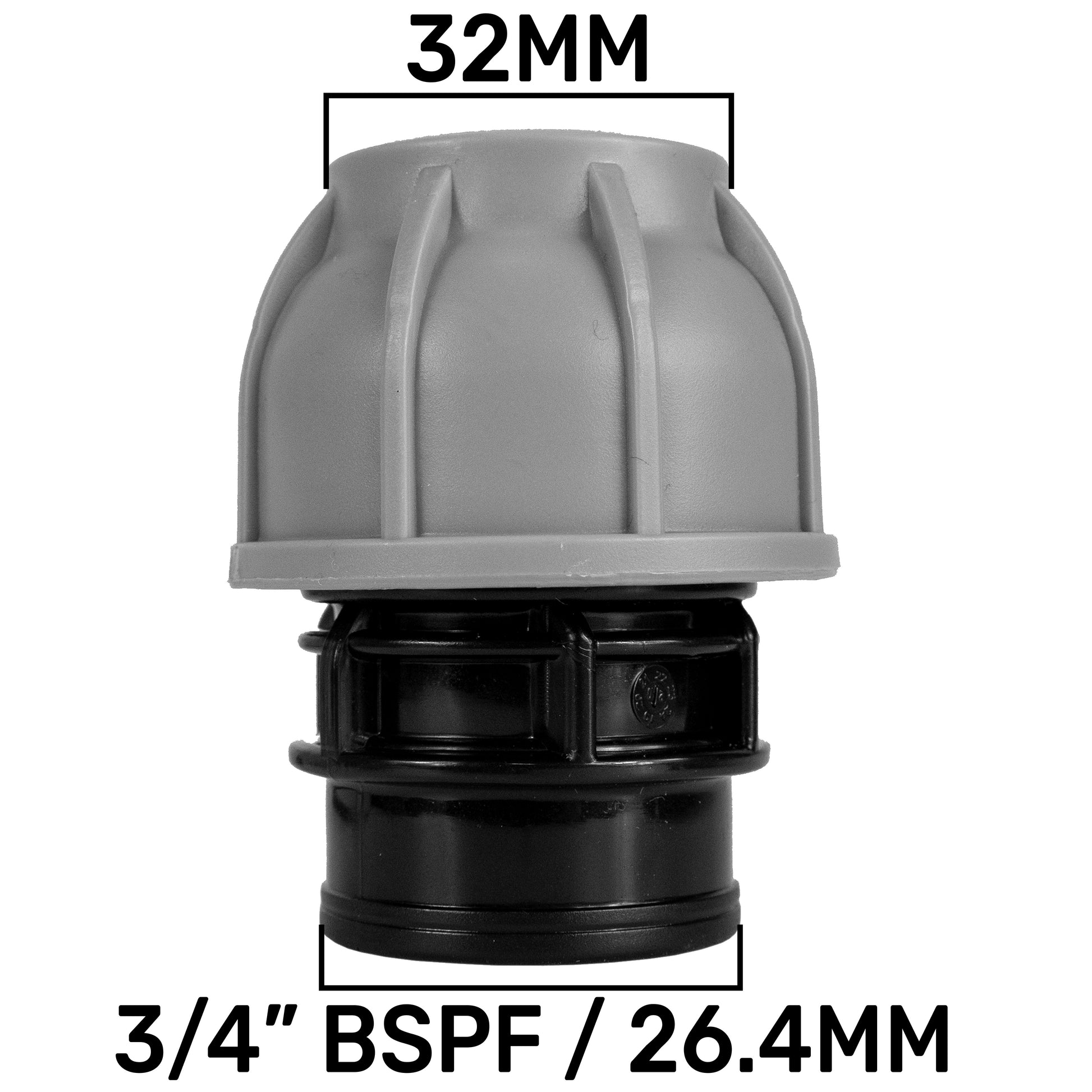

MDPE Straight Connector Coupling, 32mm - 3/4" BSPF

This is a Straight Connector Compression Coupling designed to join 32 mm MDPE pipe to a 3/4" BSP female thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). Constructed from high-grade polyethylene (PE), it combines strength with chemical and UV resistance.

Push the 32 mm pipe into the compression end and hand-tighten the collar to compress the O-ring seal. The other end features a 3/4" BSP female thread for direct attachment to male-threaded valves, taps or equipment.

Key Features

• PN10 Rating: Supports up to 10 bar (145 psi) in potable water, irrigation and industrial systems.
• PE Body: Resistant to corrosion, UV and harsh chemicals.
• Compression Seal: O-ring pressed by the collar ensures a tight, maintenance-free joint.
• BSPF Port: 3/4" BSP female thread eliminates the need for adapters.
• Tool-Free Fitment: Rapid installation without special tools or solvents.
• Optimised Flow: Straight bore design minimises turbulence and head loss.
