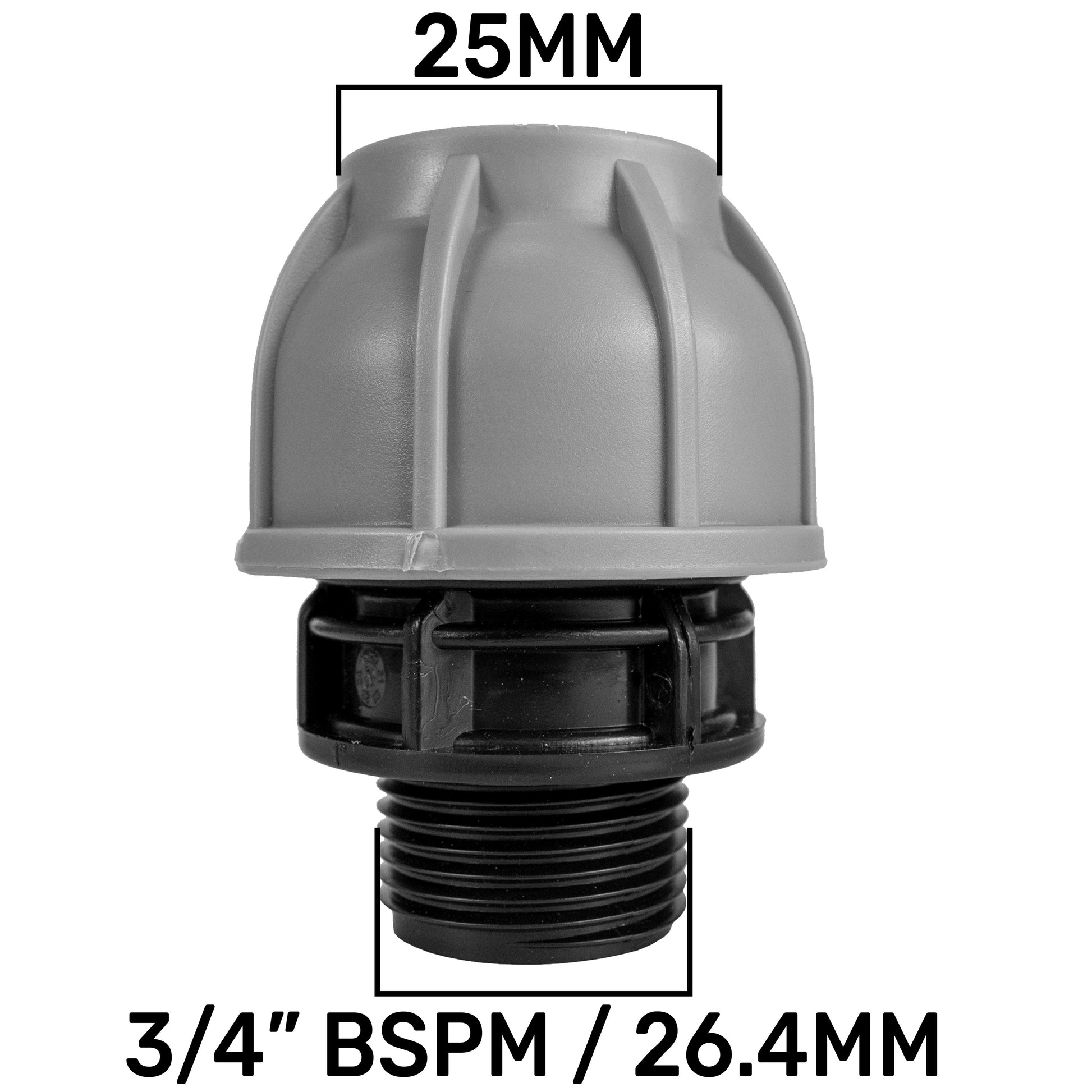

MDPE Straight Connector Coupling, 25mm - 3/4" BSPM

This is a Straight Connector Compression Coupling designed to join 25 mm MDPE pipe to a 3/4" BSP male thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). The fitting body is moulded from durable polyethylene (PE), offering excellent chemical resistance and UV stability.

Insert your 25 mm pipe into the compression end and hand-tighten the collar to compress the internal O-ring, creating a secure, leak-free seal. The opposite end features a 3/4" BSP male thread for direct connection to any female-threaded valve, tap or fitting—no adapters needed.

Key Features

• PN10 Rating: Certified for up to 10 bar (145 psi) in water supply and irrigation systems.
• Polyethylene Construction: Lightweight, durable and corrosion-resistant.
• Leak-Free Compression Seal: Hand-tightened collar compresses an O-ring onto the pipe OD.
• BSPM Connection: 3/4" BSP male thread mates directly with standard female fittings.
• Tool-Free Installation: No fusion or solvent welding—quick field installation.
• Straight-Through Design: Maintains consistent flow path with minimal pressure loss.
