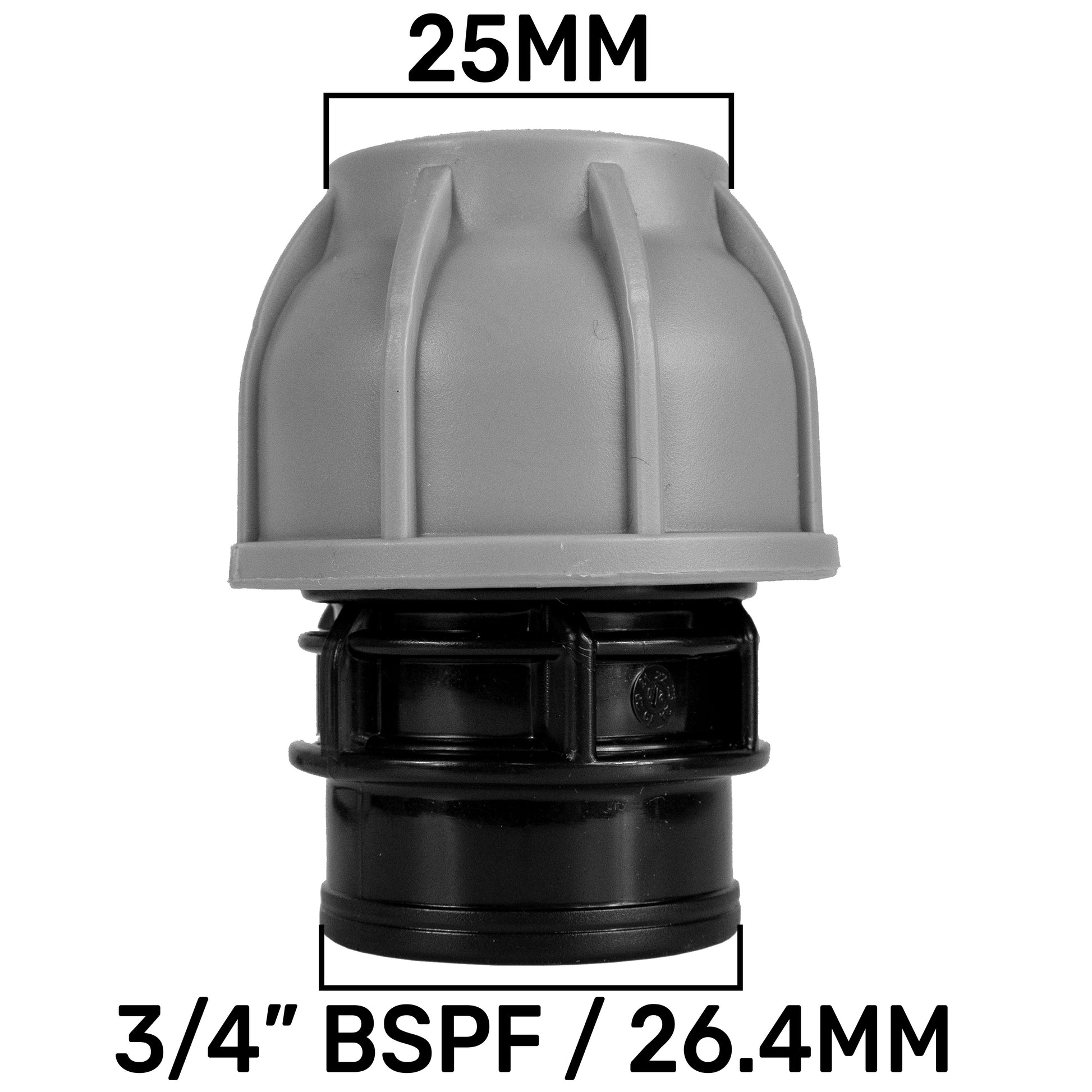

MDPE Straight Connector Coupling, 25mm - 3/4" BSPF

This is a Straight Connector Compression Coupling designed to join 25 mm MDPE pipe to a 3/4" BSP female thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). Moulded from robust polyethylene (PE), it combines strength with chemical and UV resistance.

Push the 25 mm pipe into the compression end and hand-tighten the collar to seal via the internal O-ring. The other end offers a 3/4" BSP female thread for direct attachment to male-threaded valves, taps or equipment.

Key Features

• PN10 Rating: Up to 10 bar (145 psi) in potable water, irrigation and industrial systems.
• PE Construction: Corrosion- and UV-resistant for outdoor durability.
• Compression Seal: O-ring compressed by the collar ensures a leak-free joint.
• BSPF Port: 3/4" BSP female thread eliminates the need for additional adapters.
• Tool-Free Fitment: Fast installation without special tools or welding.
• Efficient Flow: Straight bore design minimises turbulence and head loss.
