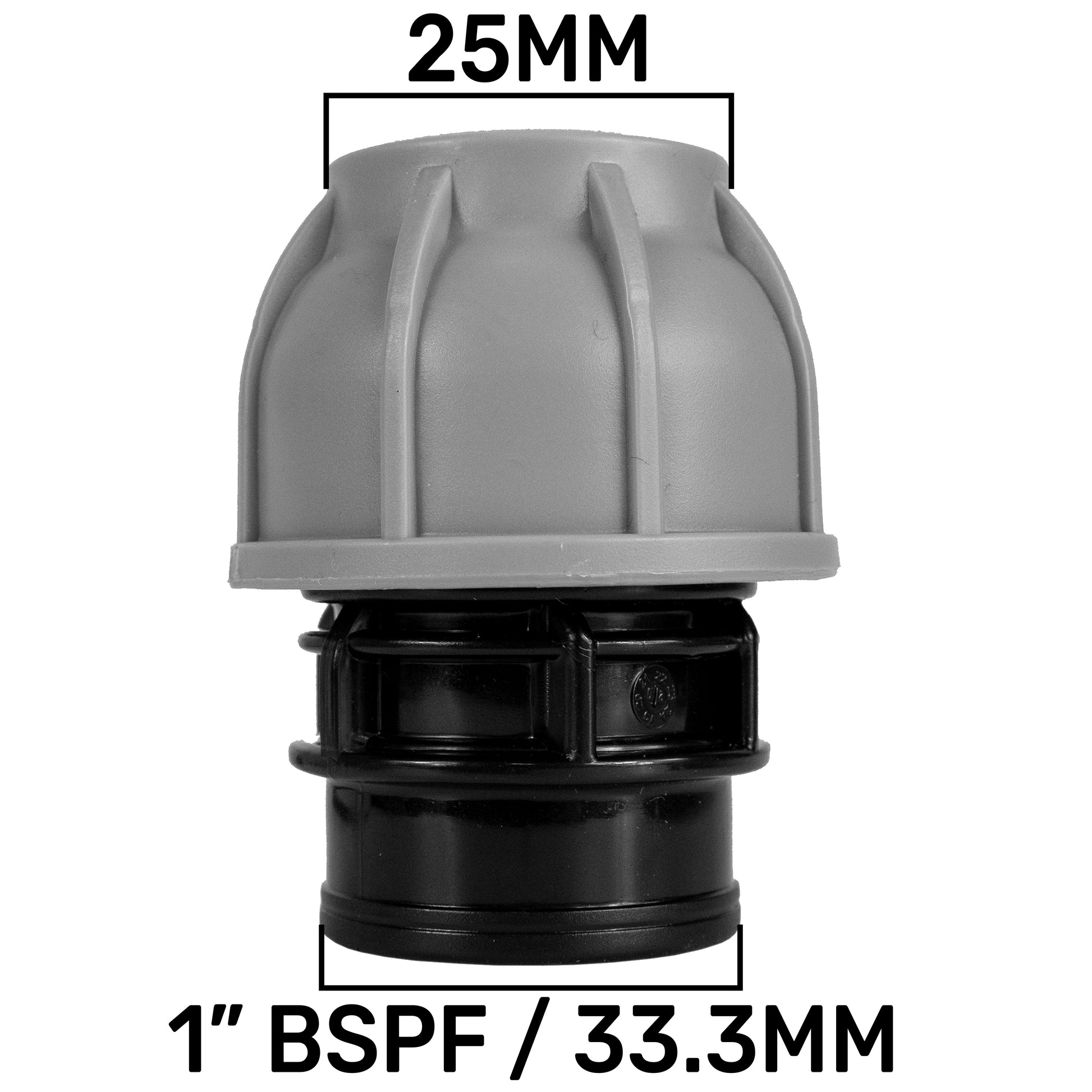

MDPE Straight Connector Coupling, 25mm - 1" BSPF

This Straight Connector Compression Coupling joins 25 mm MDPE pipe to a 1" BSP female thread, rated PN10 for up to 10 bar (145 psi). Constructed from high-grade polyethylene (PE), it offers long-lasting durability and chemical stability.

Push 25 mm pipe into the compression end, hand-tighten the collar to seal via the O-ring, and then screw the 1" BSP female thread onto any 1" male-threaded component—no extra fittings required.

Key Features

• PN10 Rating: Perfect for up to 10 bar (145 psi) water and irrigation services.
• PE Material: UV- and corrosion-resistant for extended outdoor use.
• Leak-Proof Joint: Compression collar creates a tight O-ring seal around the pipe.
• BSPF Port: 1" BSP female thread for direct male connection.
• Tool-Free Assembly: Rapid installation without welding or solvents.
• Optimised Flow: Straight-through design reduces head loss at the coupling.
