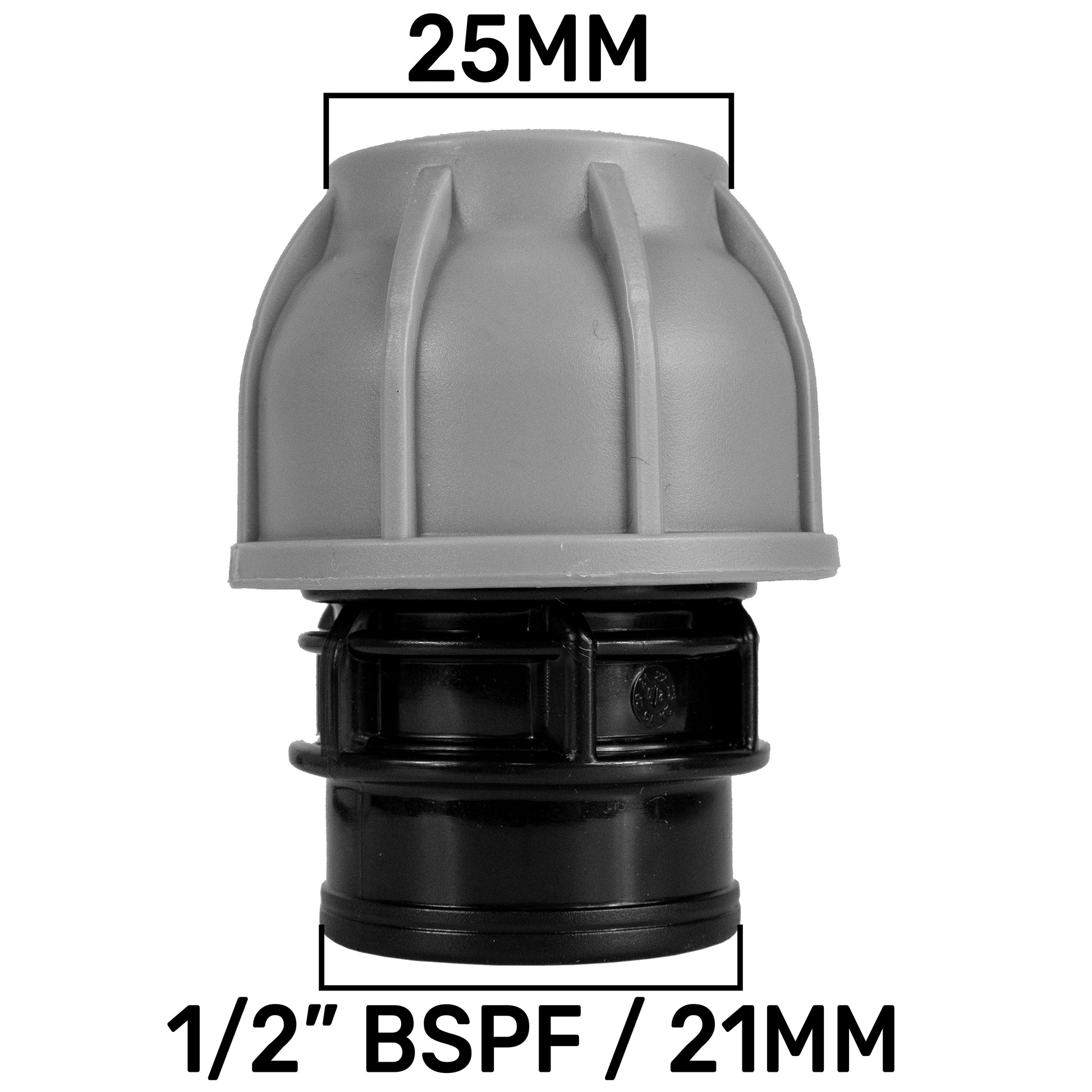

MDPE Straight Connector Coupling, 25mm - 1/2" BSPF

This Straight Connector Compression Coupling integrates 25 mm MDPE pipe with a 1/2" BSP female thread, PN10-rated for up to 10 bar (145 psi). Machined from polyethylene (PE), it offers strong chemical and UV resistance.

Push the 25 mm pipe into the compression end and hand-tighten the threaded collar to activate the O-ring seal. The 1/2" BSP female thread on the other end accepts any 1/2" male-threaded fitting—no extra adapters needed.

Key Features

• PN10 Certification: Supports up to 10 bar (145 psi) service pressures.
• Robust PE Body: Resists chemicals, UV degradation and mechanical stress.
• Secure Compression Seal: Hand-tightened collar compresses O-ring around the pipe OD.
• BSPF Outlet: 1/2" BSP female thread for direct male fitting connection.
• Tool-Free Fitment: Quick, fusion-free installation.
• Straight-Through Profile: Ensures smooth flow and minimal hydraulic loss.
