MDPE Straight Connector Coupling, 20mm - 3/4" BSPM

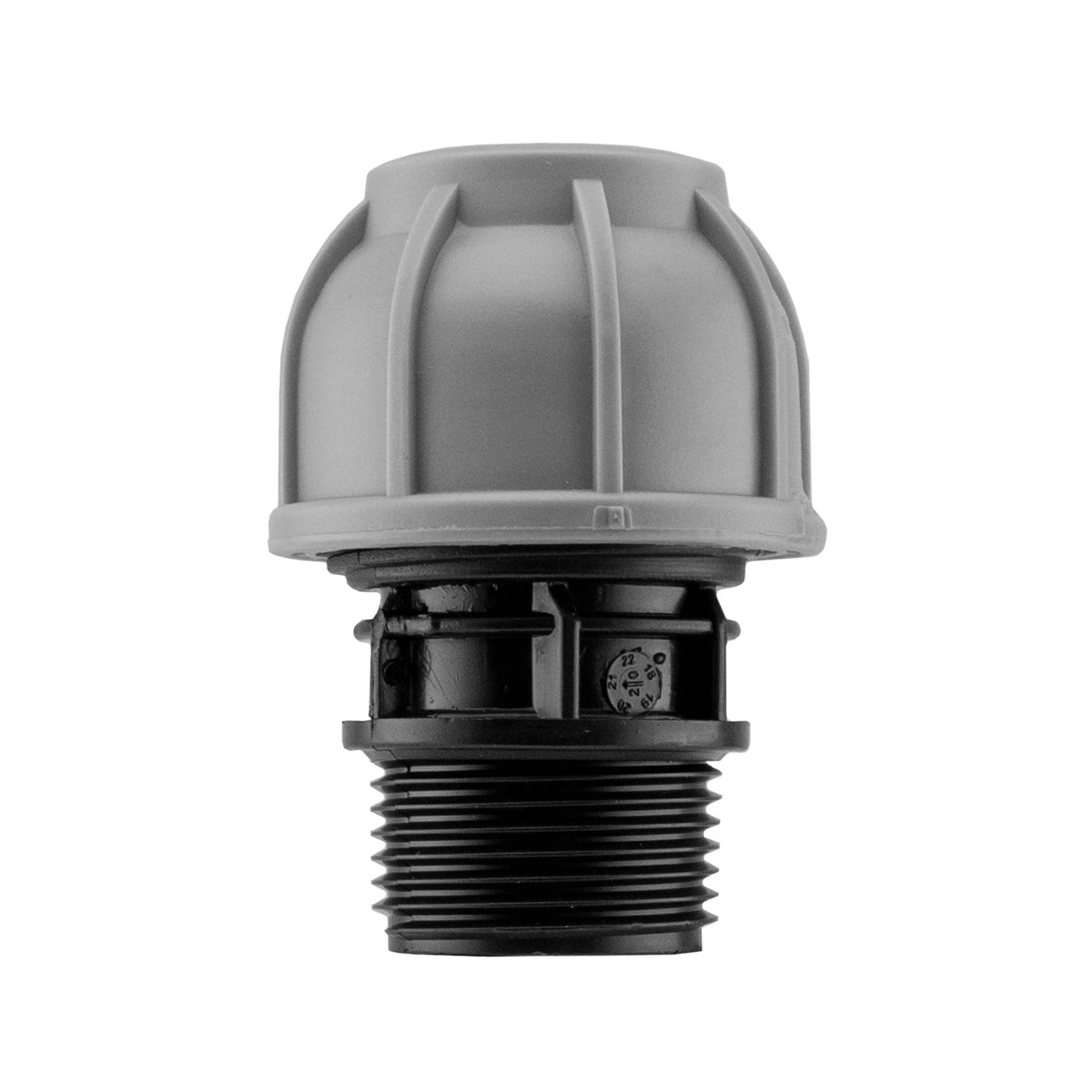

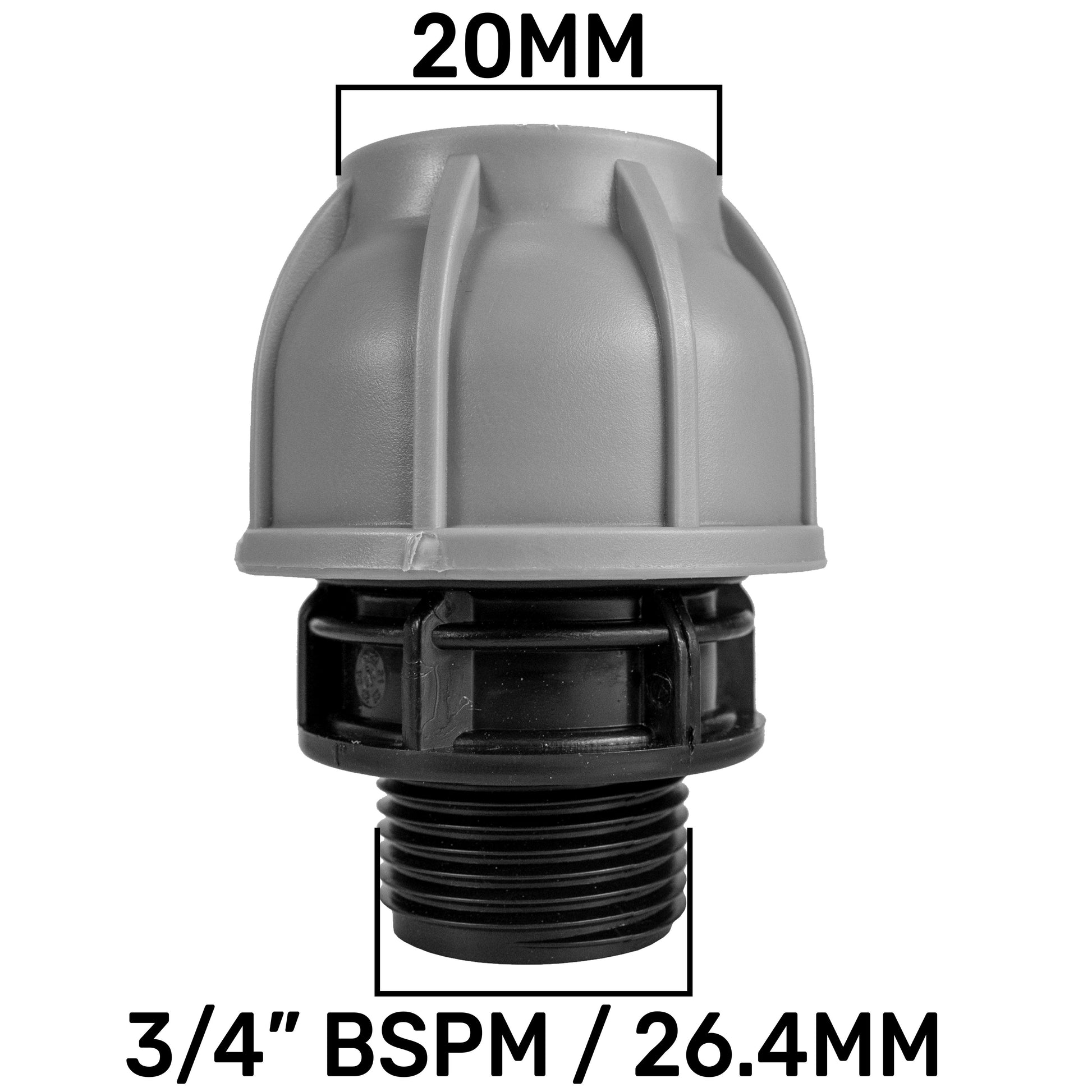

This is a Straight Connector Compression Coupling designed to join 20 mm MDPE pipe to a 3/4" BSP male thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). The body is moulded from durable polyethylene (PE), offering excellent chemical resistance and UV stability.

The compression end accepts your 20 mm MDPE pipe: push the pipe in until it seats, then hand-tighten the collar to compress the internal O-ring for a leak-free seal. The opposite end features a 3/4" BSP male thread for direct connection to any female-threaded fitting—no adapters needed.

Key Features

• PN10 Rating: Certified to 10 bar (145 psi) for water, irrigation and industrial services.
• Polyethylene Construction: Lightweight, corrosion- and UV-resistant.
• Leak-Free Seal: Hand-tightened collar compresses an O-ring onto the pipe OD.
• BSPM Connection: 3/4" BSP male thread mates directly with standard female fittings.
• Tool-Free Installation: No fusion or solvent welding—quick field installation.
• Straight-Through Flow: Minimises pressure loss by maintaining a consistent bore.
