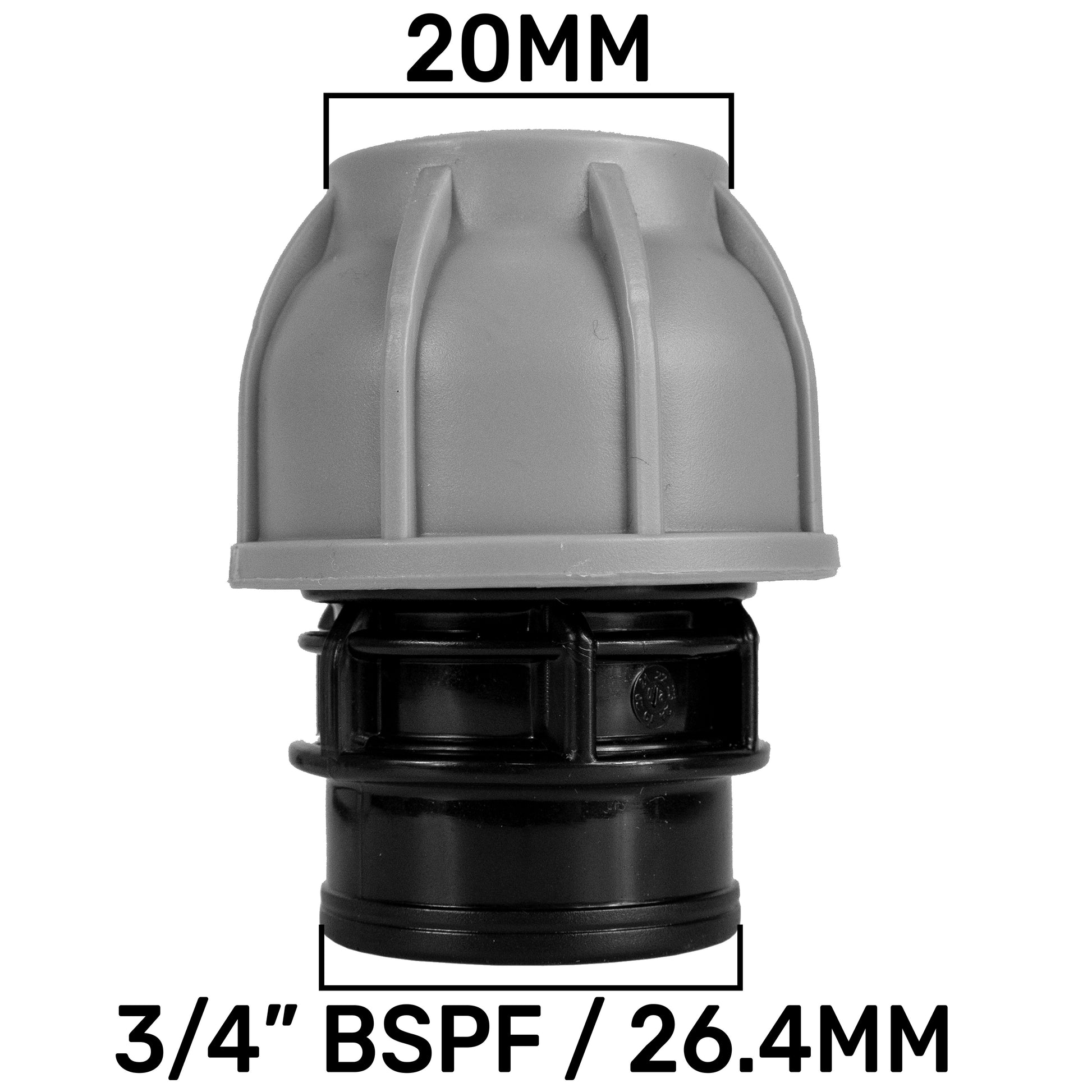

MDPE Straight Connector Coupling, 20mm - 3/4" BSPF

This is a Straight Connector Compression Coupling designed to join 20 mm MDPE pipe to a 3/4" BSP female thread, rated PN10 for up to 10 bar (1 MPa / 145 psi). Constructed from robust polyethylene (PE), it resists chemicals and UV exposure.

For installation, insert your 20 mm MDPE pipe into the compression end and hand-tighten the collar to compress the O-ring. The opposite end features a 3/4" BSP female thread for direct attachment to male-threaded valves, taps or equipment.

Key Features

• PN10 Rating: Up to 10 bar (145 psi) for reliable performance.
• PE Body: Durable, UV-stable and corrosion-resistant.
• Secure Compression: O-ring seal compressed by a hand-tightened collar.
• BSPF Connection: 3/4" BSP female thread eliminates the need for adapters.
• Quick Fit: Tool-free assembly—ideal for repairs and retrofits.
• Unrestricted Flow: Straight design ensures minimal hydraulic loss.
