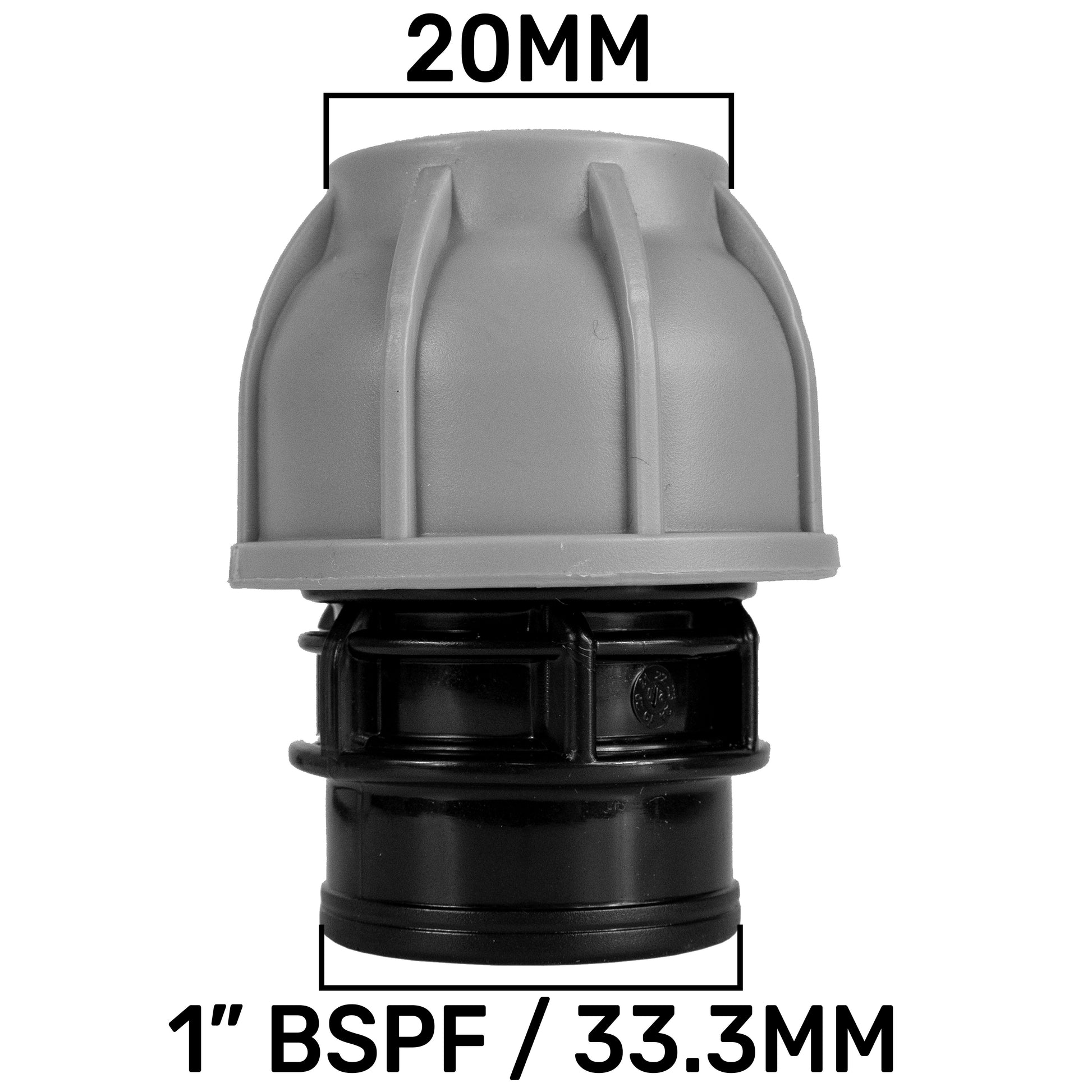

MDPE Straight Connector Coupling, 20mm - 1" BSPF

This Straight Connector Compression Coupling joins 20 mm MDPE pipe to a 1" BSP female thread, PN10-rated to 10 bar (1 MPa / 145 psi). Moulded from high-grade polyethylene (PE), it offers exceptional durability and chemical resistance.

Installation is simple: push the 20 mm pipe into the compression end, hand-tighten the collar to seal via the internal O-ring, and then screw the 1" BSP female thread onto any 1" male-threaded fitting—no extra parts required.

Key Features

• PN10 Certified: Handles pressures up to 10 bar (145 psi).
• PE Construction: Corrosion- and UV-resistant for outdoor use.
• Leak-Proof Seal: Compression collar compresses an O-ring around the pipe.
• BSPF Port: 1" BSP female thread for direct male connection.
• No Tools Required: Quick, fusion-free installation.
• Efficient Flow: Straight bore reduces turbulence at the joint.
