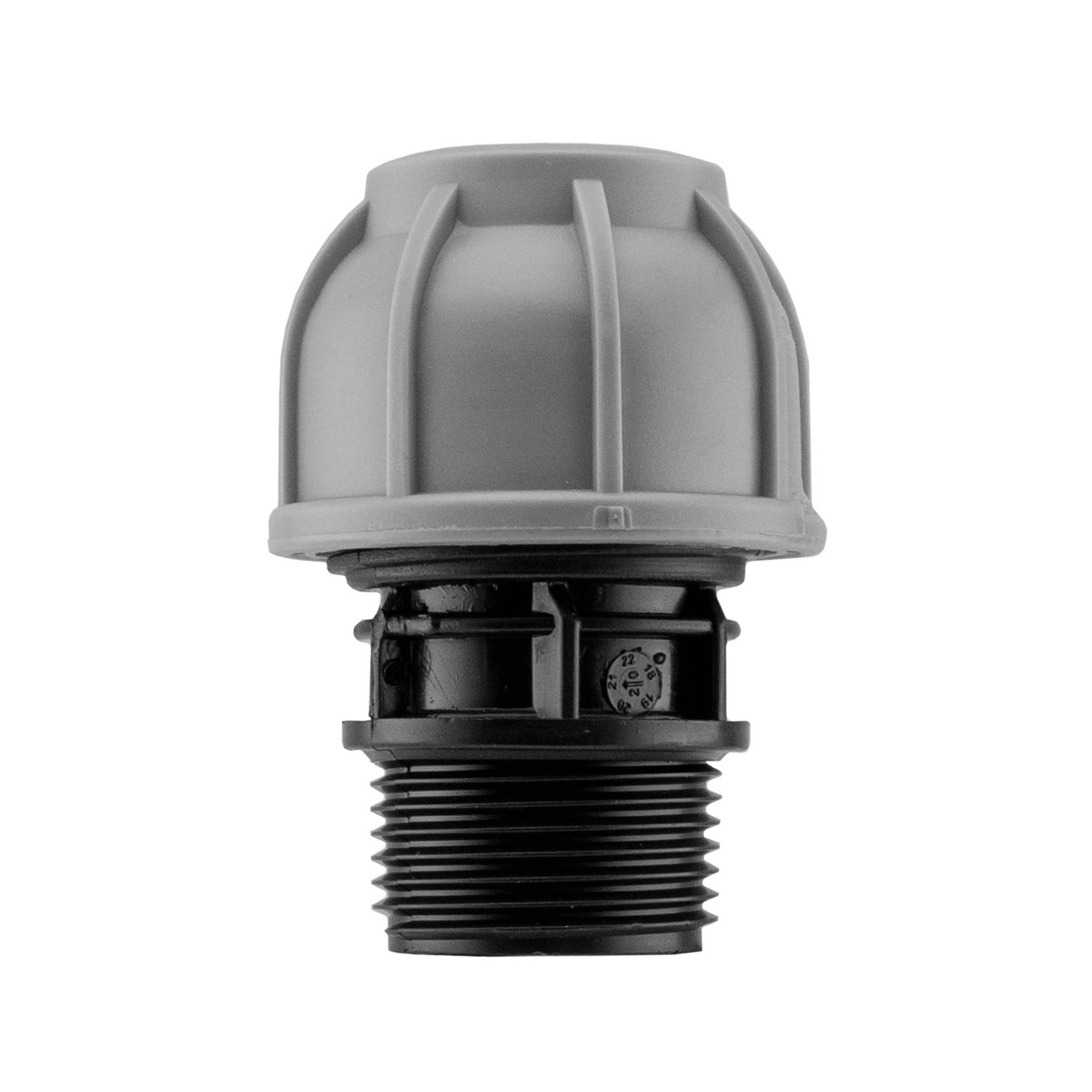

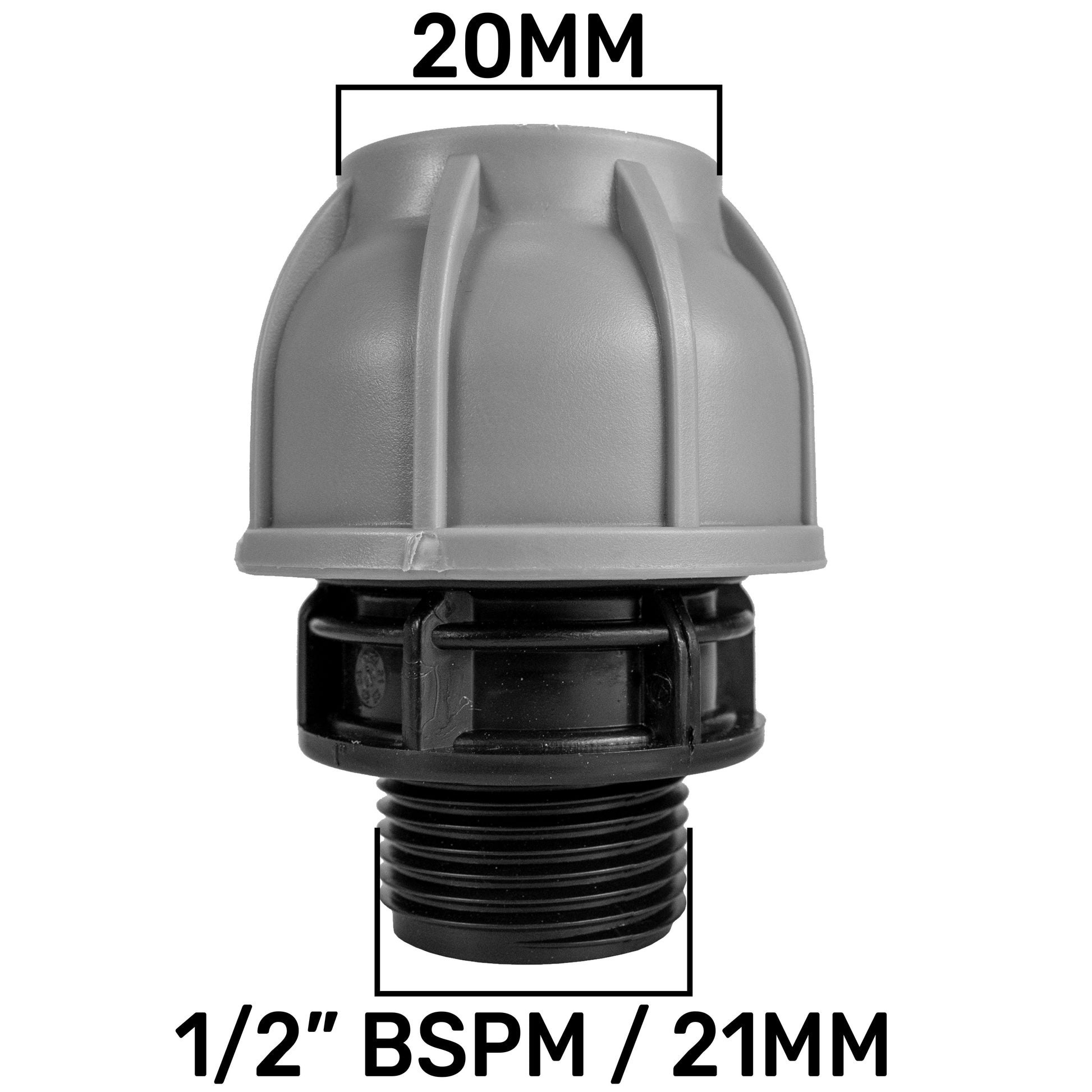

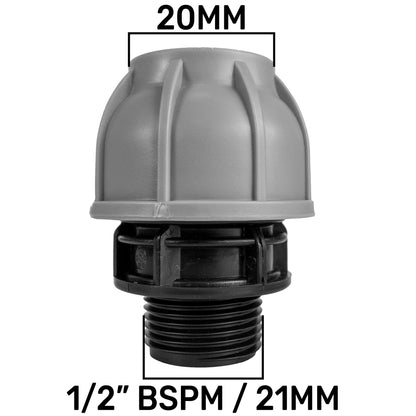

MDPE Straight Connector Coupling, 20mm - 1/2" BSPM

This Straight Connector Compression Coupling is for 20 mm MDPE pipe to a 1/2" BSP male thread, rated PN10 (10 bar/145 psi). The fitting is manufactured in polyethylene (PE) for strength and UV stability.

To fit, insert your 20 mm pipe into the compression end, tighten the collar by hand to activate the O-ring seal, then screw the 1/2" BSP male thread into any 1/2" female port. The result is a secure, leak-free connection without welding.

Key Features

• PN10 Rating: Suitable for up to 10 bar (145 psi) services.
• Durable PE: Resistant to chemicals, UV and impact.
• Compression Seal: O-ring compressed by a hand-tightened collar for a tight joint.
• BSPM Outlet: 1/2" BSP male thread for direct connection to female fittings.
• Tool-Free Fitment: Fast installation and maintenance.
• Straight-Through Design: Ensures consistent flow and minimal pressure drop.
