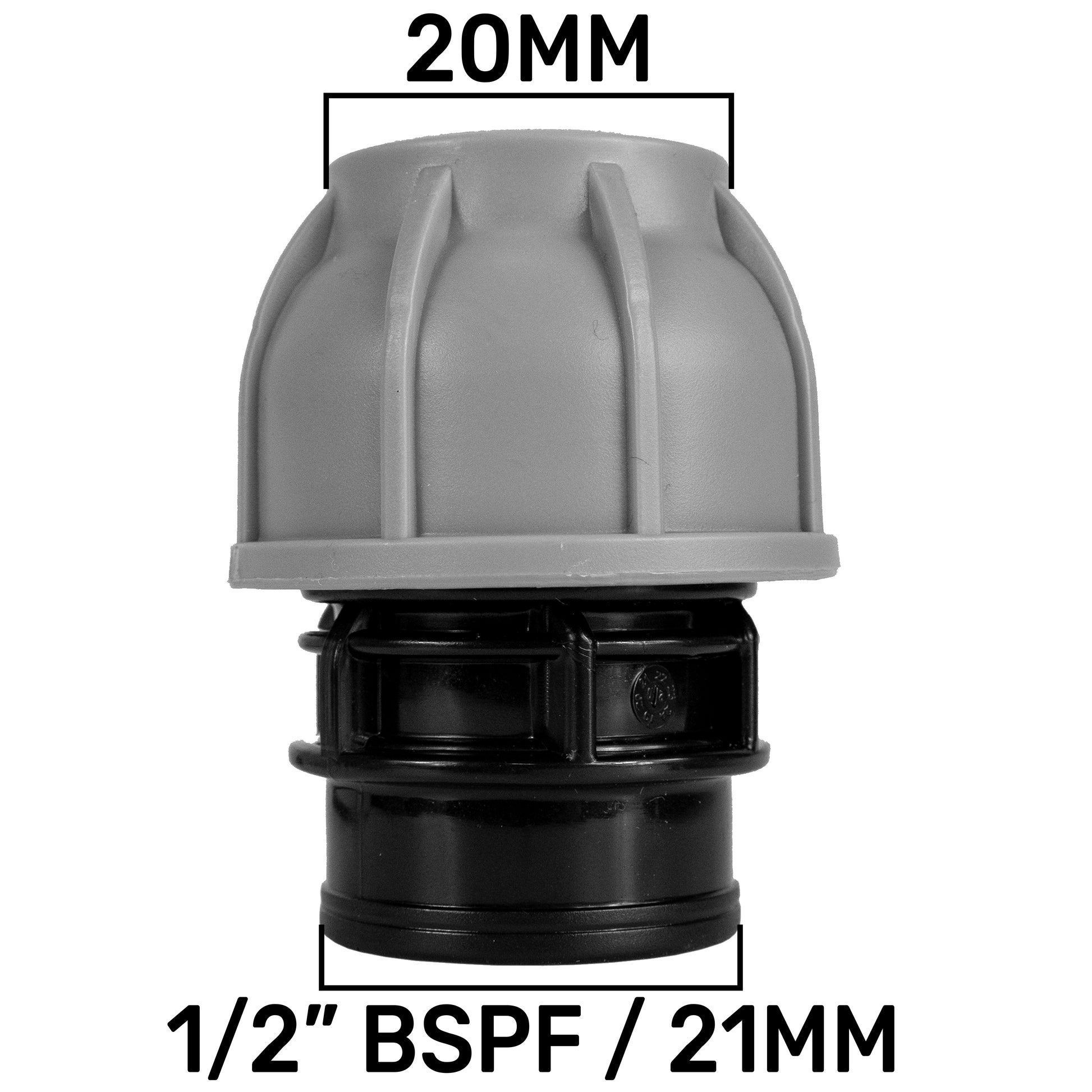

MDPE Straight Connector Coupling, 20mm - 1/2" BSPF

This is a Straight Connector Compression Coupling designed to join 20 mm MDPE pipe to a 1/2" BSP female thread, rated PN10 for up to 10 bar (145 psi). The fitting body is moulded from durable polyethylene (PE), offering excellent chemical resistance and UV stability.

The compression end accepts your 20 mm MDPE pipe: simply push the pipe into the fitting until it seats, then hand-tighten the threaded collar to compress the internal O-ring and form a leak-free seal. The opposite end features a 1/2" BSP female thread for direct connection to any male-threaded tap, valve or port without adapters.

Key Features

• PN10 Pressure Rating: Certified for up to 10 bar (1 MPa / 145 psi) in water supply and irrigation systems.
• Polyethylene Construction: Lightweight, durable and corrosion-resistant, ideal for outdoor and industrial use.
• Leak-Free Compression Seal: Hand-tightened collar compresses an O-ring onto the 20 mm pipe OD for a secure joint.
• Threaded BSPF Connection: 1/2" BSP female thread mates directly with standard male fittings—no extra adapters needed.
• Tool-Free Installation: No heat fusion or solvent welding—install or replace quickly in the field.
• Straight-Through Design: Minimises hydraulic losses by maintaining a consistent flow path.
