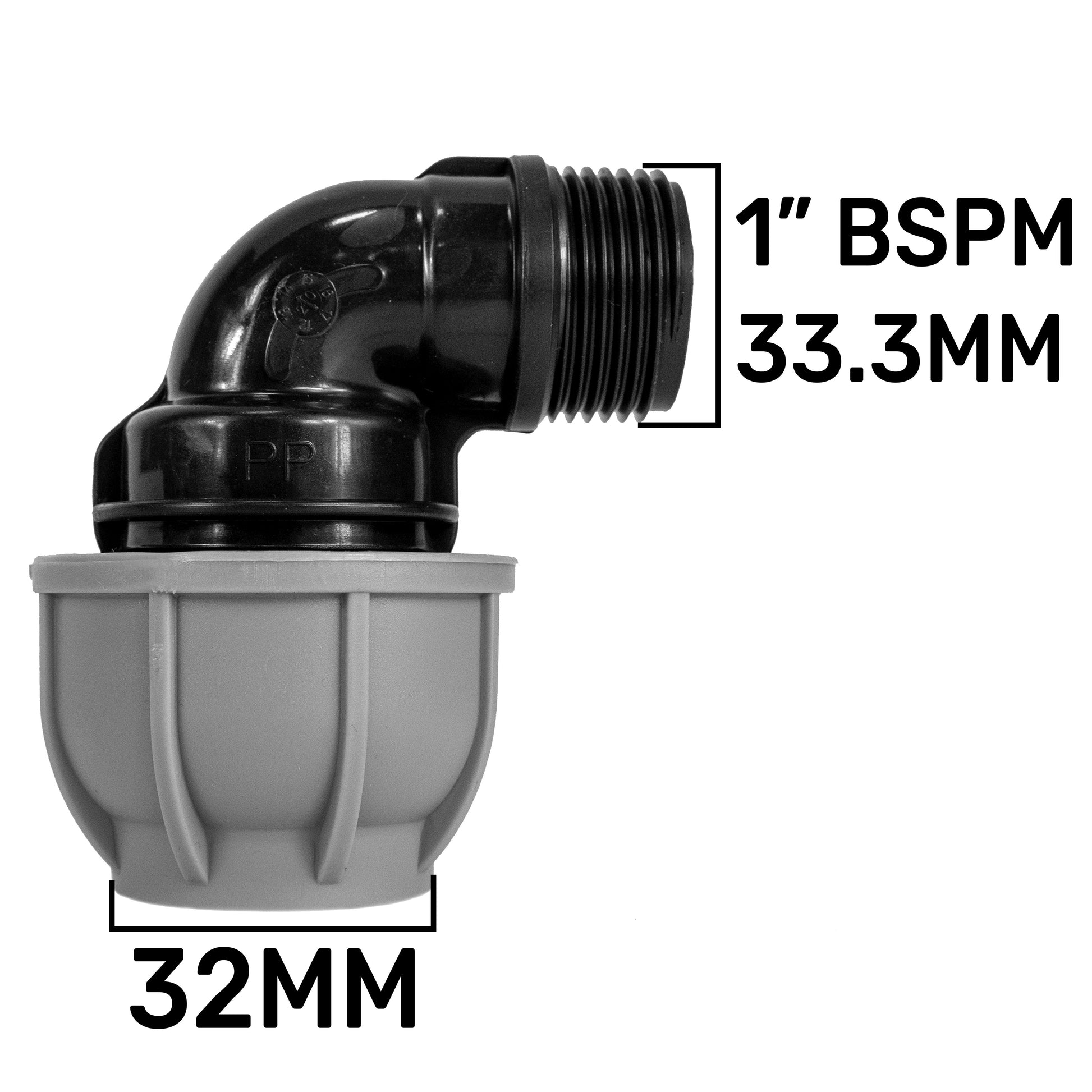

MDPE Elbow, 32mm - 1" BSPM

This 32 mm MDPE elbow adaptor features a 32 mm compression socket and a 1" BSP male outlet at 90°, moulded from high-density polyethylene and PN10-rated for up to 10 bar (145 psi). It offers a robust male-threaded tap-off while rerouting your line.

To fit, push the 32 mm MDPE pipe into the compression end, hand-tighten the collar to compress the O-ring, then screw the 1" BSP male outlet into any female-threaded component. No specialist tools or welding needed.

Key Features

• High-Density PE: UV- and chemical-resistant construction.
• PN10 Pressure Rating: Up to 10 bar (145 psi).
• Leak-Proof Compression: Hand-tightened collar compresses O-ring on the pipe OD.
• 1" BSP Male Outlet: Directly mates with female-threaded fittings.
• Tool-Free Assembly: Push-in and hand-tighten.
• Compact 90° Elbow: Perfect for tight corner installations.
