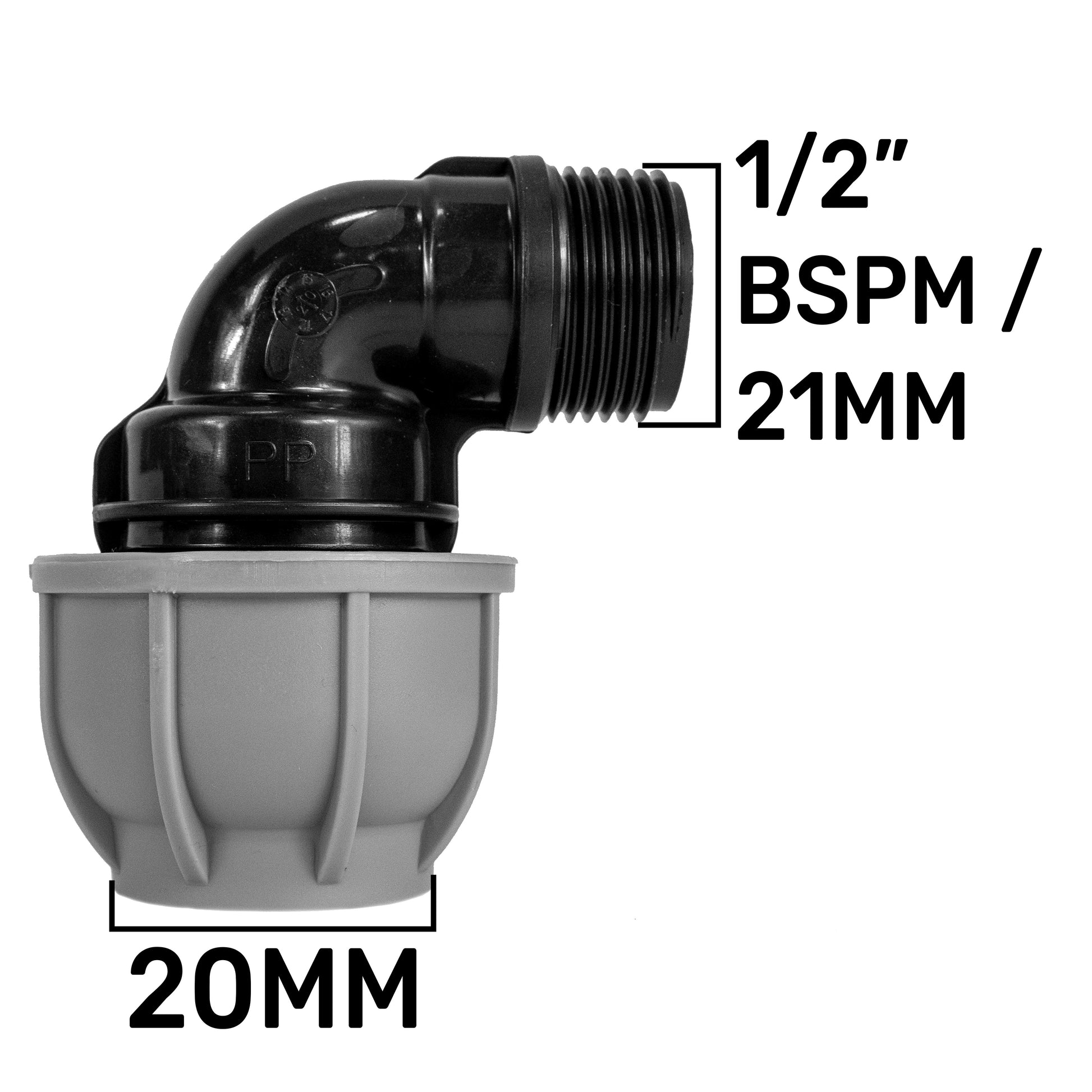

MDPE Elbow, 20mm - 1/2" BSPM

This 20 mm MDPE elbow adaptor features a 20 mm compression socket and a 1/2" BSP male outlet at 90°, moulded from high-density polyethylene and PN10-rated for up to 10 bar (145 psi). It offers a compact male-threaded tap-off while rerouting your MDPE line.

To install, push the 20 mm pipe into the compression end, hand-tighten the collar to seal the O-ring, then screw the 1/2" BSP male outlet into any female-threaded component. No fusion welding or specialist tools are required for a secure, leak-proof joint.

Key Features

• High-Density Polyethylene: Chemical- and UV-resistant construction.
• PN10 Certification: Up to 10 bar (145 psi) pressure rating.
• Leak-Proof Compression: Hand-tightened collars compress O-rings around the pipe OD.
• 1/2" BSP Male Outlet: Direct mating with standard female-threaded fittings.
• Tool-Free Assembly: Push-fit and hand-tighten installation.
• Compact 90° Elbow: Perfect for tight corners and directional changes.
