MDPE Bibtap Wall Flange, 25mm - 3/4" BSPF

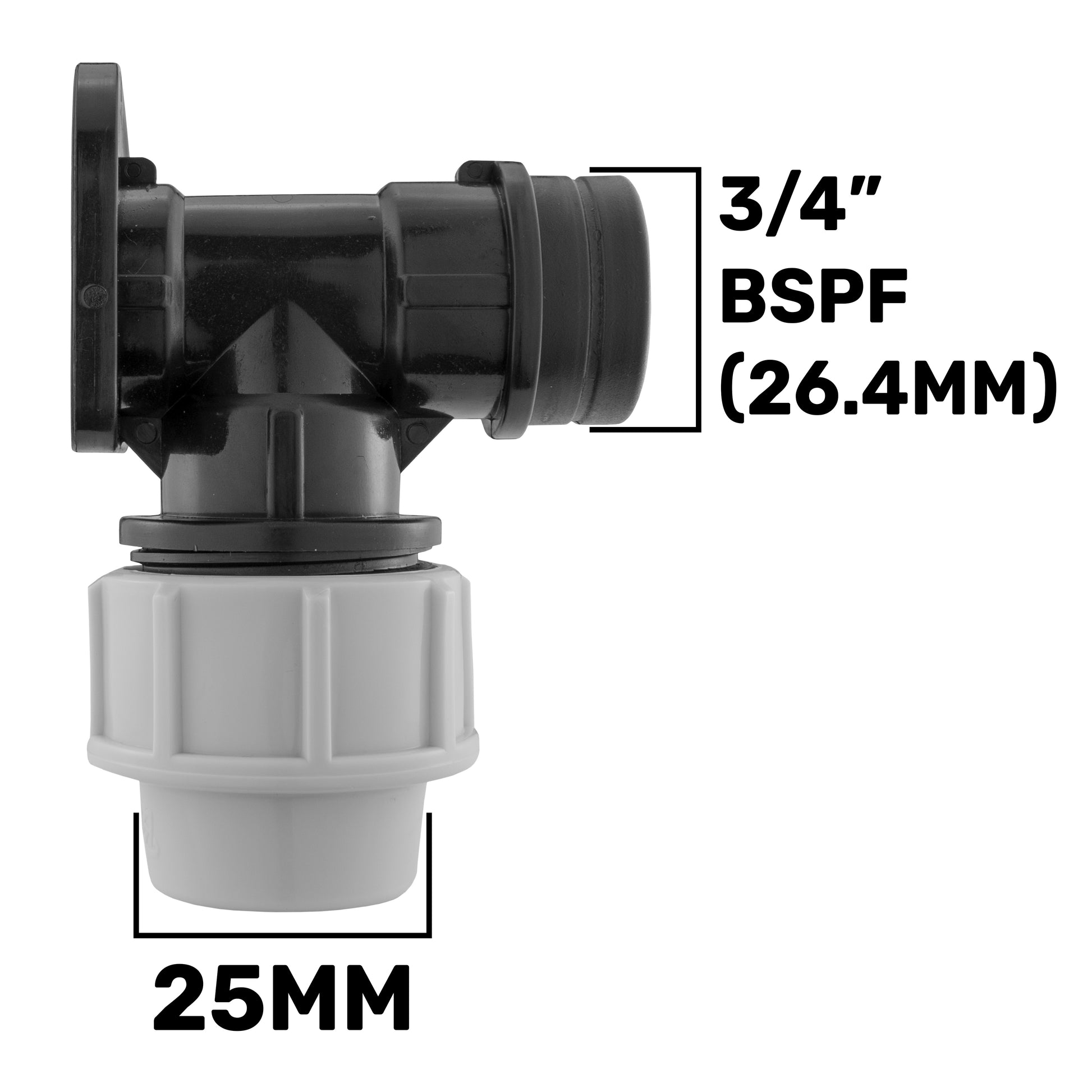

This 25 mm MDPE wall flange compression fitting features a 25 mm compression inlet and a 3/4" BSP female threaded outlet at 90°, precision-moulded from high-density polyethylene and PN10-rated for up to 10 bar (145 psi). Its integrated flange plate allows secure mounting to walls or panels while adapting your MDPE line to standard threaded accessories.

Installation is simple and tool-free: fix the flange plate to your wall or panel using suitable screws through the pre-drilled holes, push the 25 mm MDPE pipe into the compression socket, then hand-tighten the collar to compress the internal O-ring. Finally, screw any 3/4" male-threaded tap, valve or gauge into the BSP female outlet. No fusion welding or specialist tools are required.

Key Features

• High-Density Polyethylene: UV-, chemical- and impact-resistant construction for long service life.
• PN10 Pressure Rating: Certified to withstand up to 10 bar (1 MPa / 145 psi).
• Compression Socket: Leak-proof O-ring seal activated by hand-tightened collar.
• 3/4" BSP Female Outlet: Directly accepts standard male-threaded fittings.
• Wall-Mount Flange: Pre-drilled plate for secure attachment to walls or panels.
• Tool-Free Assembly: Push-fit and hand-tighten installation—no welding or solvents needed.
