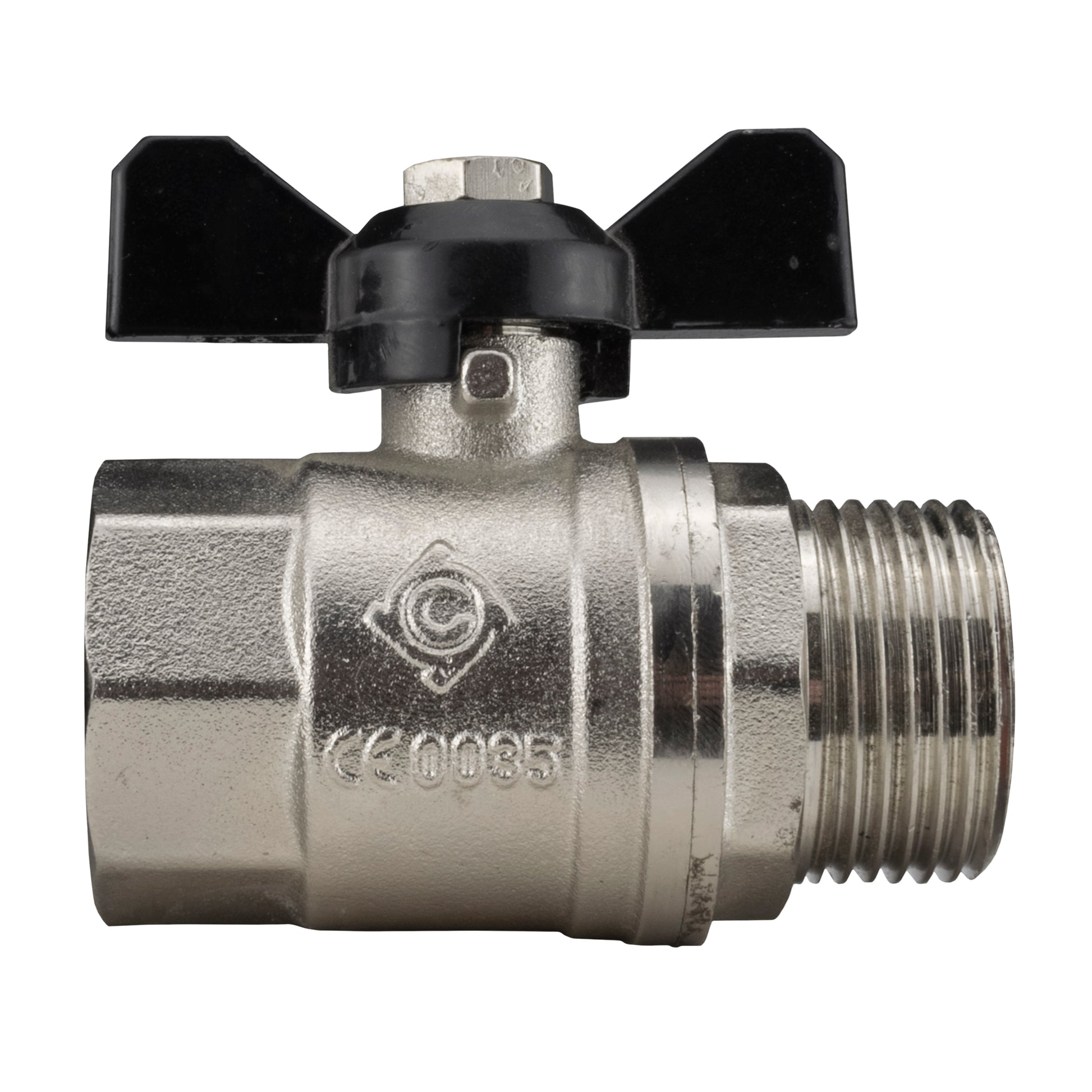

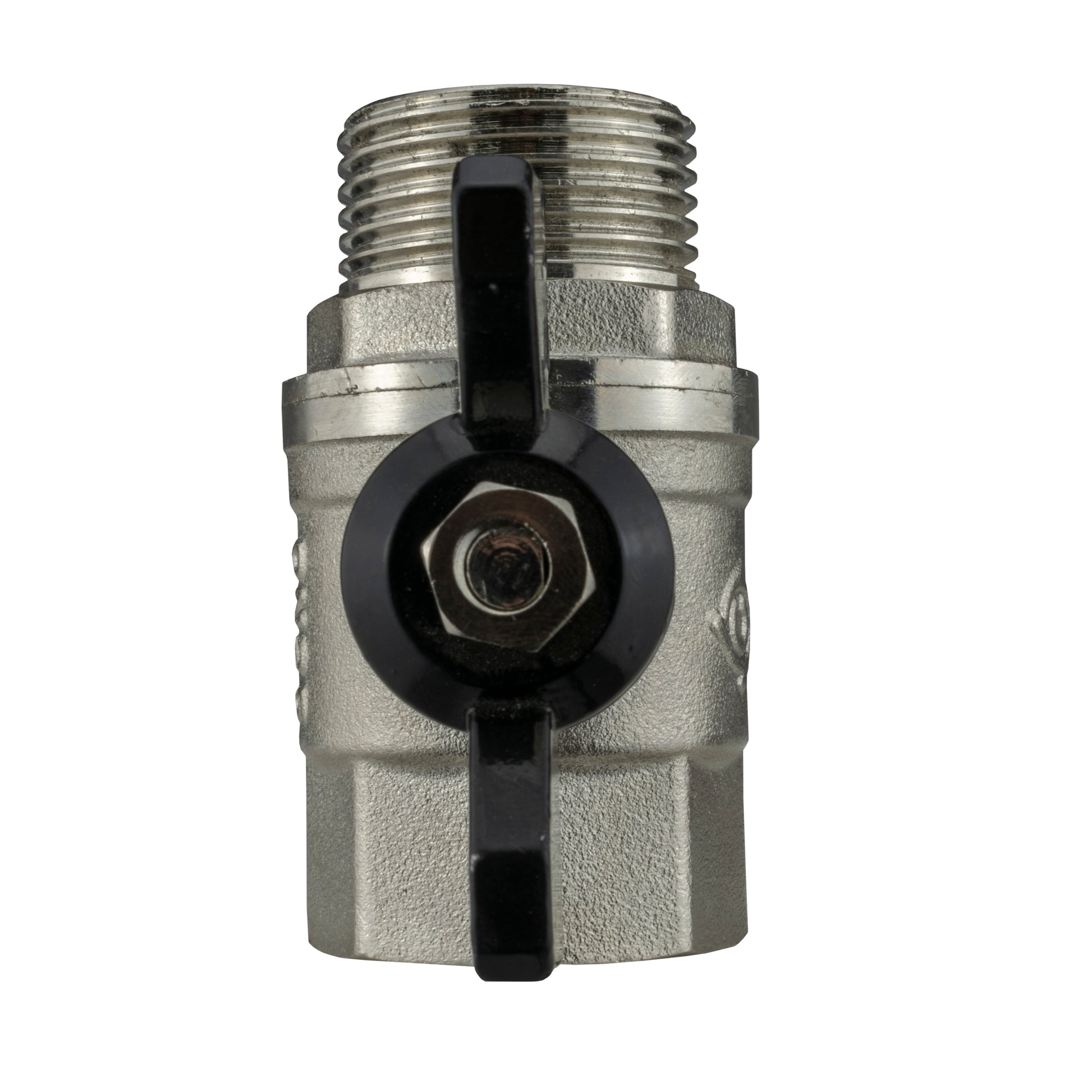

Male to Female Nickel Plated Brass Butterfly Valve, 1"

Constructed from high-quality brass with a durable nickel plating, this 1" BSP male-to-female butterfly valve offers superior corrosion resistance and mechanical strength for both indoor and outdoor fluid-control applications. Both inlet and outlet feature precision-cut 1" BSP threads (≈ 33.25 mm) for seamless integration with standard pipework.

The compact butterfly design employs a quarter-turn disc mechanism for swift on/off control, delivering a reliable, leak-free seal under pressures up to 10 BAR. Its low-profile brass body makes installation straightforward—even in tight spaces—while the nickel-plated finish provides long-lasting protection and a polished appearance.

• Body Material: Brass with nickel plating for enhanced corrosion and wear resistance

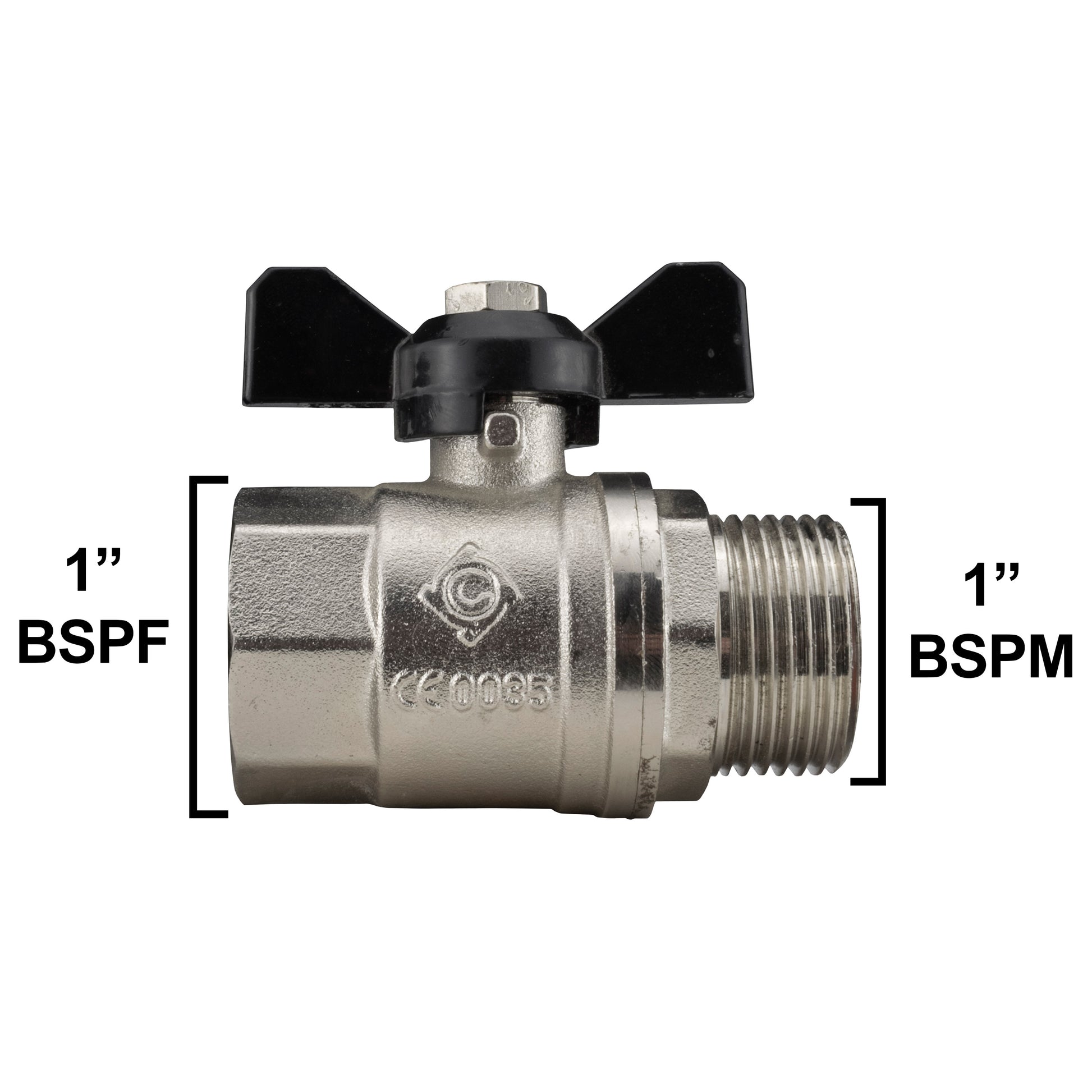

• Threads: 1" BSP male inlet & 1" BSP female outlet (≈ 33.25 mm)
• Operation: Quarter-turn butterfly disc for quick flow control and positive shut-off
• Design: Compact, low-profile for easy mounting in confined areas
• Pressure Rating: Up to 10 BAR
• Finish: Polished nickel for both performance and visual appeal
