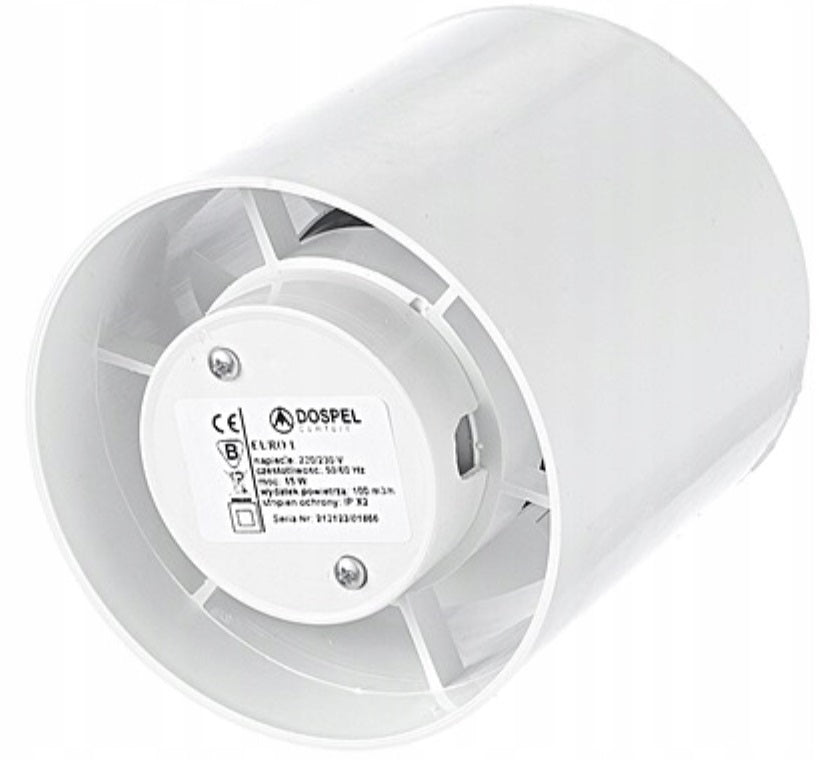

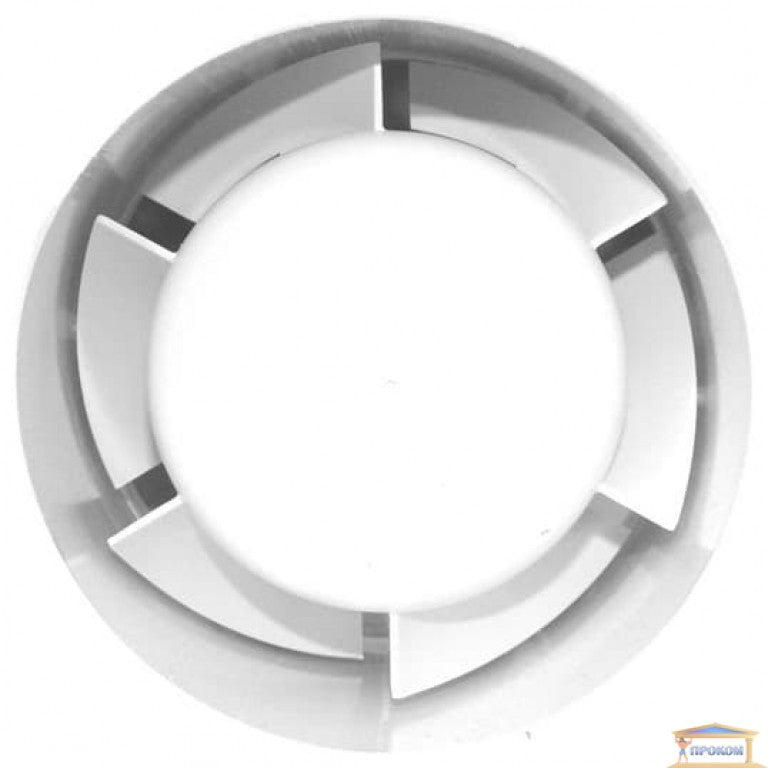

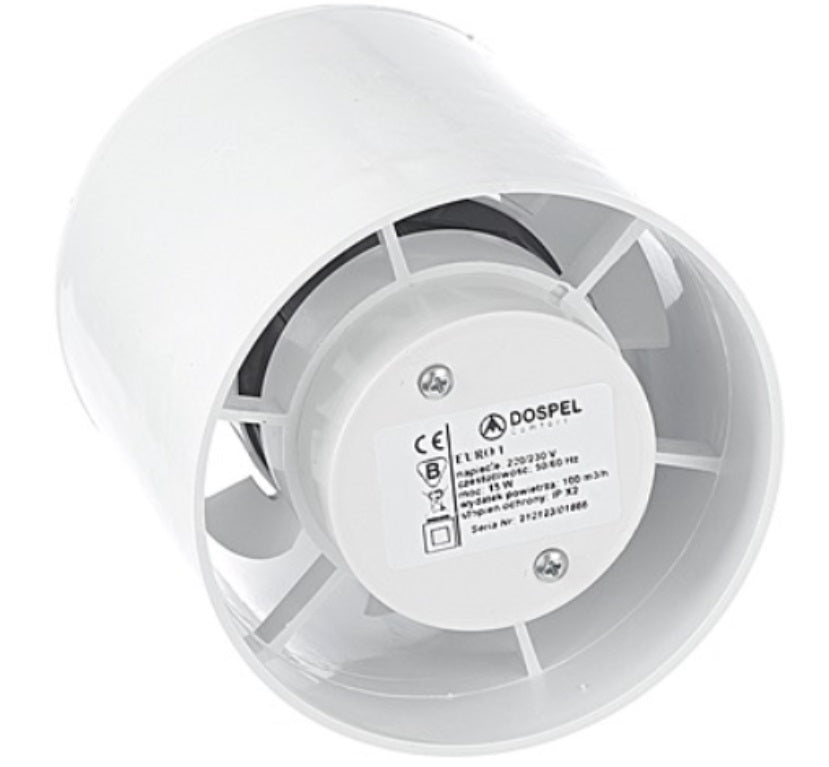

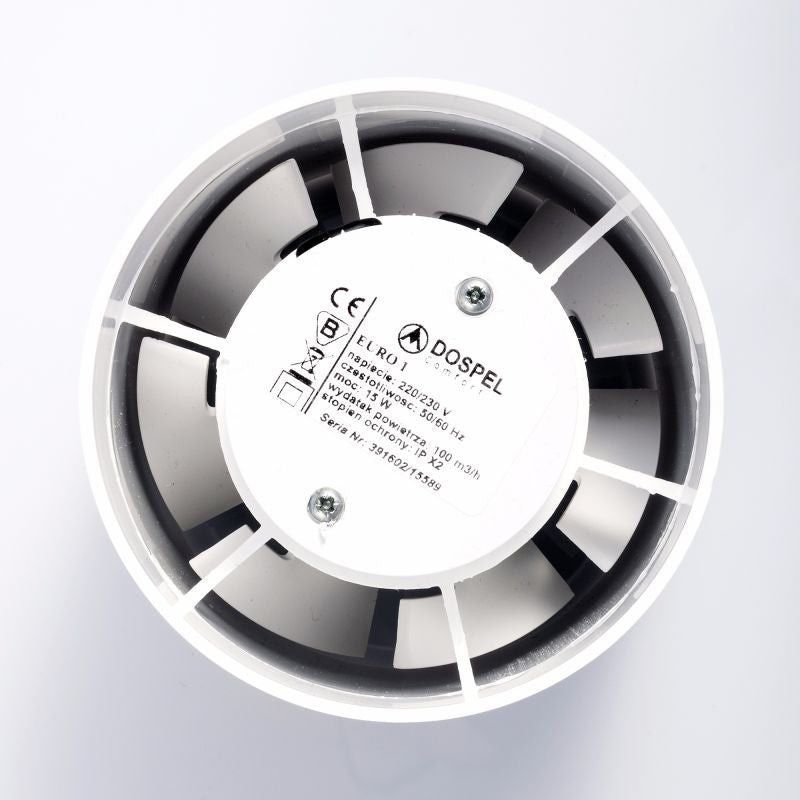

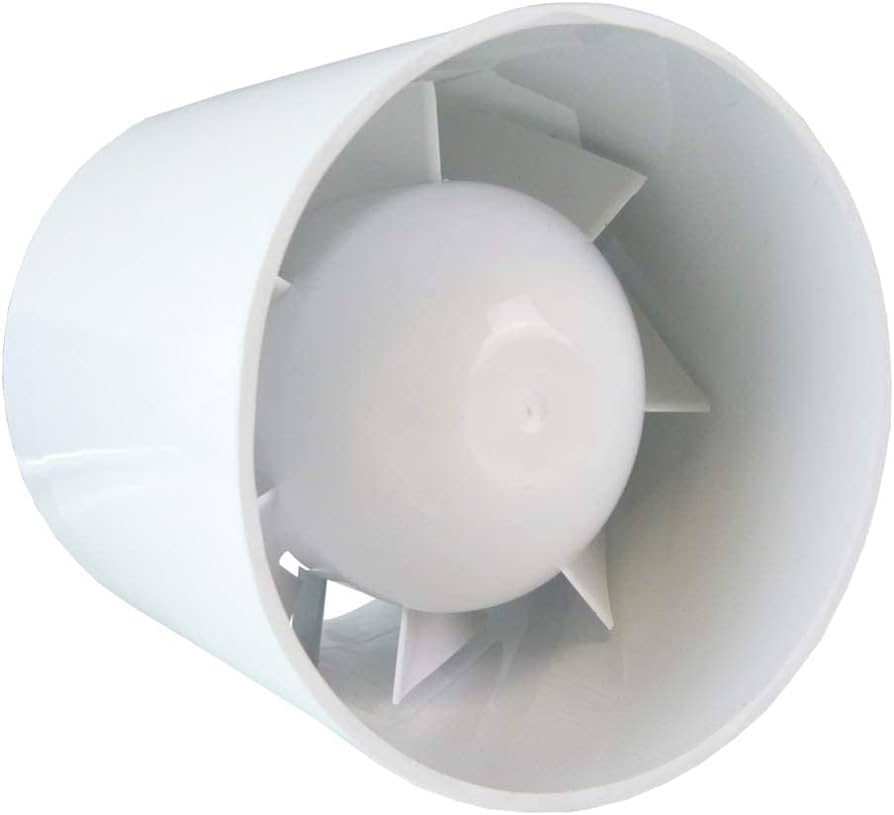

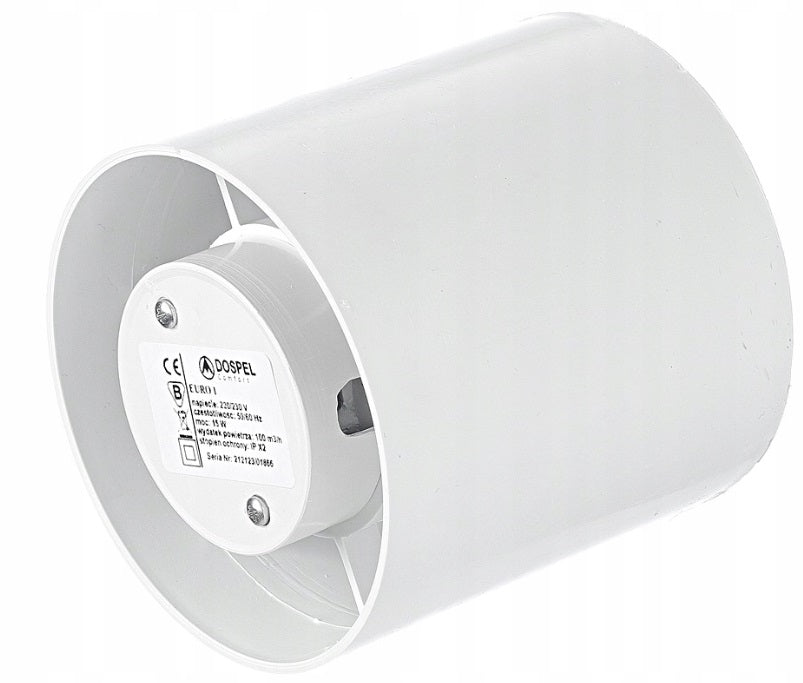

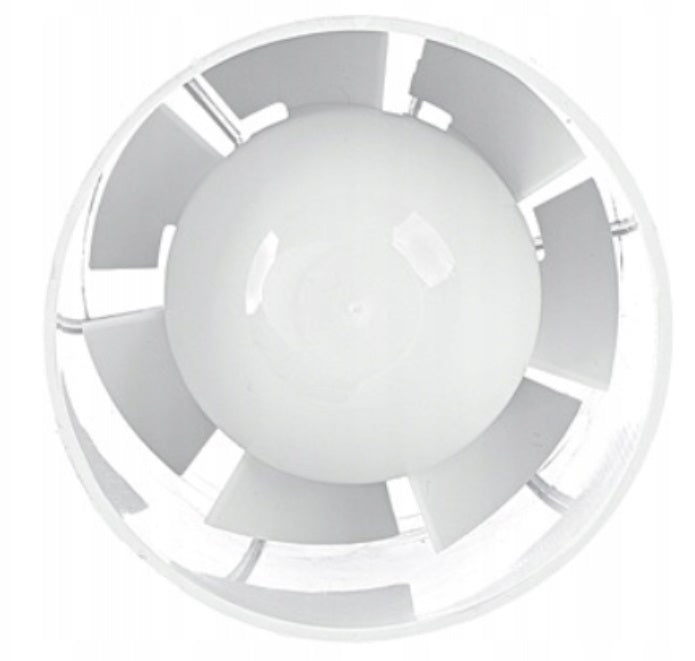

Euro Axial Bathroom Extraction Fan, 150mm

This 150 mm axial fan by Dospel is crafted from durable white ABS plastic to deliver powerful, unobtrusive ventilation in residential, office, gastronomic and light-industrial settings. Its compact design integrates seamlessly into ducted systems or wall-mounted housings, ensuring optimal air circulation without compromising aesthetics.

Rated IPX2 for protection against vertically dripping water (up to 15° tilt) and featuring Class II insulation for enhanced electrical safety, it’s built for reliable continuous operation—even in environments with occasional moisture exposure. Sleeve bearings guarantee smooth, quiet performance, and the robust construction is complemented by quality Polish electronics and supplied power cables for straightforward installation.

Key Features & Performance

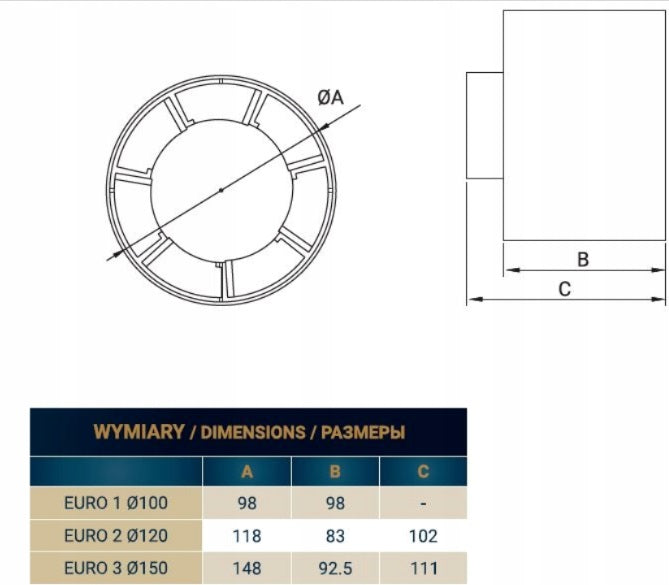

• Size: 150 mm diameter for easy integration into standard ductwork.
• Construction: UV-stabilised, impact-resistant ABS plastic with a clean white finish.
• Ingress protection: IPX2 drip-proof rating.
• Electrical safety: Class II insulation—no earth connection required.
• Bearing type: Sleeve bearings for low-maintenance, quiet operation.
• Airflow: 280 m³/h at 0 Pa static pressure.
• Static pressure: 68 Pa maximum.
• Acoustic level: 47 dB(A) at typical operating point.
• Motor specs: 2 650 rpm, 20 W power consumption, 0.13 A current draw.
• Temperature rating: Operates reliably up to 40 °C ambient.
• Origin: Manufactured in Poland with high-quality Polish electronics.
• Installation: Includes power cables; fits standard duct outlets with simple screw-fix frame.
