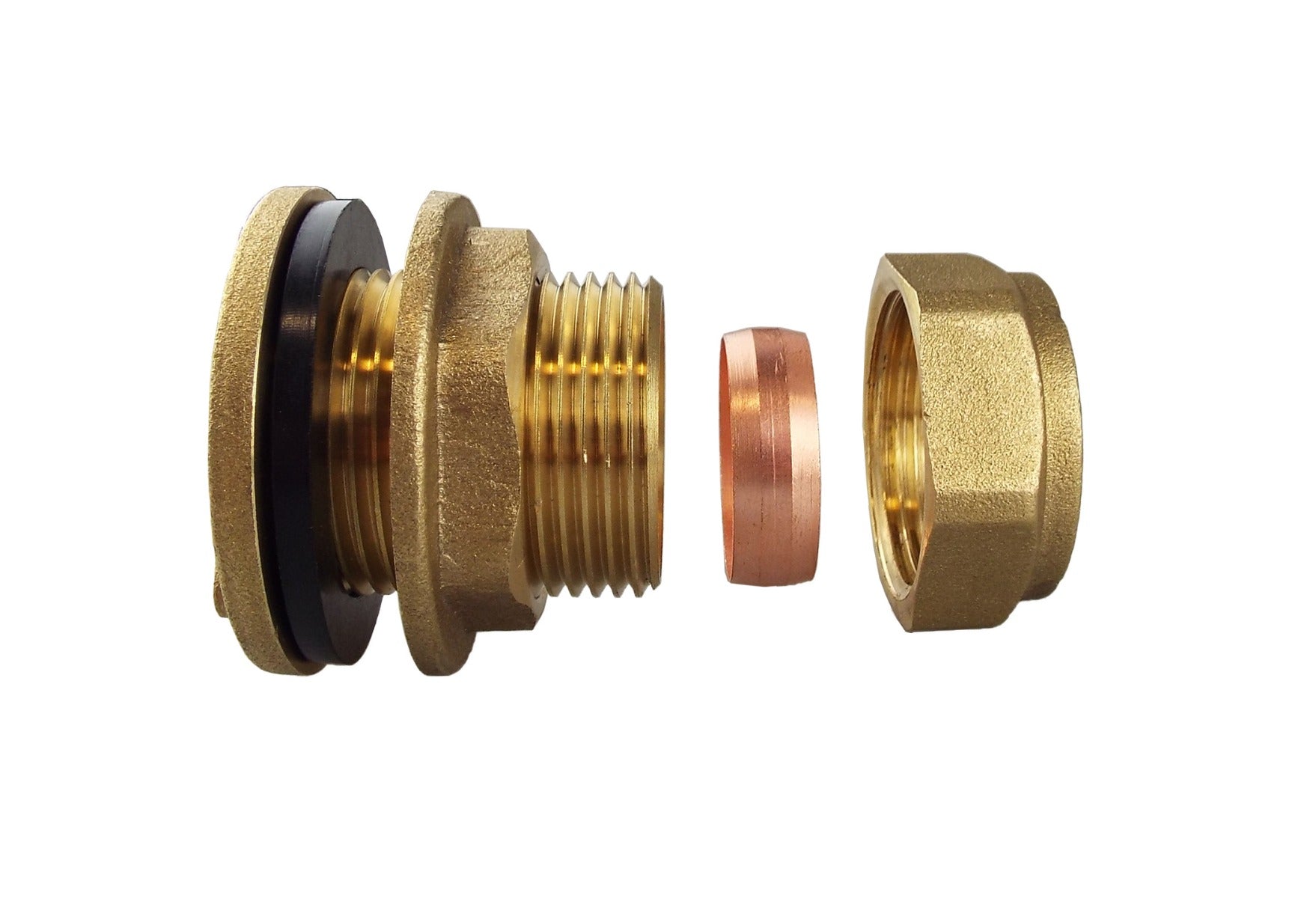

Brass Compression Water Tank Adapter for 15mm Copper Pipe

Forged from dezincification-resistant brass, this tank adapter provides a 15 mm compression connection on one side and a threaded shank for a secure tank bulkhead on the other. Supplied with a matching brass nut and EPDM washer, it allows you to connect 15 mm copper pipe directly to your water tank without additional fittings.

The precision-machined compression end uses a copper olive (included) and nut to form a leak-proof seal on the copper pipe when tightened. The bulkhead shank passes through a drilled tank wall and locks in place with the external nut and washer, sealing against leaks under pressure.

• Material: Dezincification-resistant brass
• Pipe Connection: 15 mm compression (copper olive & nut supplied)
• Tank Connection: Threaded shank with brass nut & EPDM washer
• Application: Direct feed from copper piping into water tanks, cisterns or containers
